Super Wire Attachment Thermocouple Spot Welder Machine 3.2ah Accumulator Capacity
Place of Origin Shenzhen China
Brand Name Canroon
Certification CE; ISO9001:2008
Model Number CR100-000-AA1
Minimum Order Quantity 1SET
Packaging Details depend on our customers
Delivery Time A week after confirmed payment
Payment Terms T/T
Supply Ability 100 Pieces per Week
Product Details
Type Portable Charge Voltage 100-240VAC, 50/60Hz
Automatic Spot Welding Time 3 Seconds Recover / Charging Time 10 Seconds
High Light

thermocouple wire welder


portable spot welding machine

Product Description


Super Wire Attachment Thermocouple Spot Welder Machine 3.2ah Accumulator Capacity

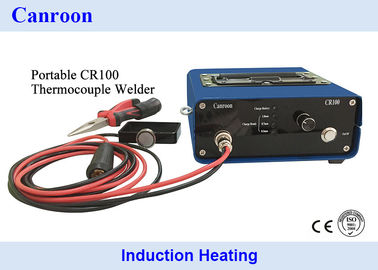

CR100 portable thermocouple welder was designed and manufactured by Canroon, as an important optional accessories of our CR2000 series induction heating system.


This portalbe spot welding machine ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.


It can also be used for welding of metal workpiece and other metal material.





  • small size, portable type;
  • light and handy
  • fast spot welding;
  • automatic charging;
  • easy operation interface;




  Charge Voltage      100-240VAC, 50/60Hz
  Accumulator Working Voltage      12VDC 50/60Hz
  Accumulator Capacity      3.2Ah
  Automatic Spot Welding time      3 seconds
  Recover / Charging time      10 Seconds
  Charging State Display      LED
  Max. Penetration Depth      <0.2mm
  Max. Heating Penetration Depth      <0.3mm



 Size & Weight:


Hight Width Depth Weight
74mm 185mm 188mm 2.7kg




  • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
  • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
  • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
  • Strong electric storage ability enable 2000 times of using after fully charged;
  • Just 10 seconds for circuit recovery after one time spot welding;
  • Charging limitation, no need for watching when charging;
  • LED display enables visual run state management;
  • Protection for over discharge.
