PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

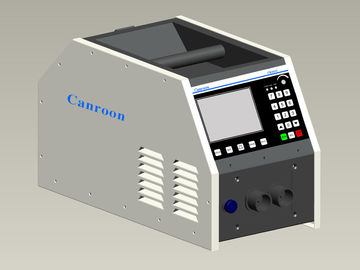

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F
PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F

Large Image :  PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F

Product Details:
Place of Origin: ShenZhen China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2000-03.5A-14T
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 5000USD
Packaging Details: depend on our customers
Delivery Time: depend on the order and destination
Payment Terms: T/T,L/C
Supply Ability: 500sets/month
Detailed Product Description
Name: Portable Induction Heating Machine Applications: For Post Weld Heat Treating
Temperature: 1400°F Rated Capacity: 3.5KW
Temperature Recorder: 2 Channel Temperature Recorder Cooling Mode: Air Cooled
High Light:

induction heater machine

,

induction heat treating equipment

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F



Quick Detail:



Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-03.5A-14T

Voltage:230V

Current:16A

Rated Capacity:3.5KW

Rated Duty Cycle:3.5KW

Dimensions:H:300MM W:245MM D:550MM

Weight:12Kg

Usage: Brazing, Stress relieving and preheating,PWHT

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:230V;1-Phase,50HZ

Temperature recorder:2 Channel temperature recorder



Description:



The 3.5KW induction welding machine can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.



Applications:



With the 3.5KW induction welding machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

  • Welding fabrication and construction;
  • Preheating of welds;
  • Post-weld heat treatment;
  • Coating removal;
  • Shrink Fit and so on
  • Post Weld Heat Treating (PWHT) a P91 header to 1400°F after welding



Specifications:



Input Amperes at Rated Output

230V:16A

Thermal conversion efficiency

More than 90%

Maximum Rated output

3.5KW

Cooling Mode

Air cooled

Input power

230V,1-phase,50HZ

Rated Output

3.5KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:300MM W:245MM D:550MM

Transportation

By sea or By Air

Weight

12KG

Warranty

12 Months



Competitive Advantage:



1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F 0

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F 1

PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F 2PWHT Portable Induction Heating Machine For Post Weld Heat Treating 1400°F 3
