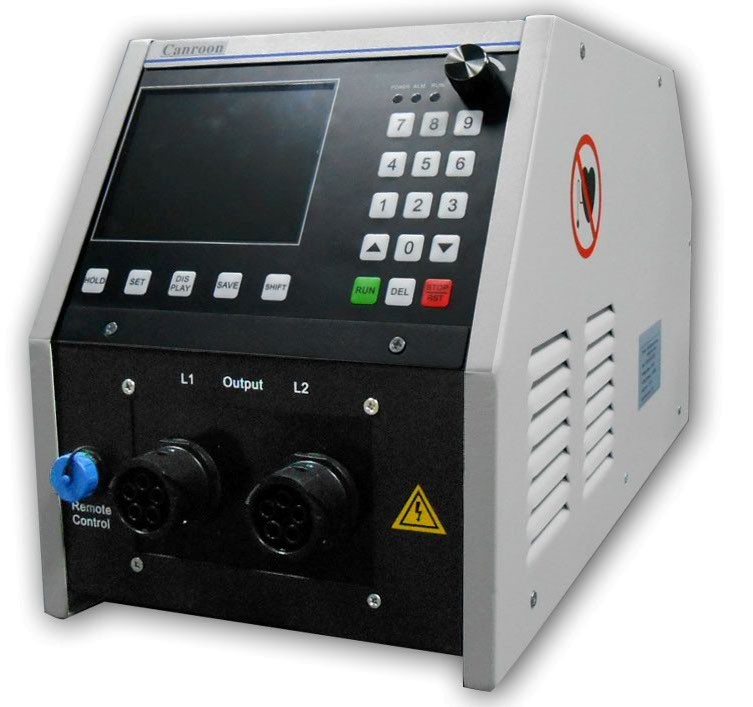

Portable Medium Frequency Induction Heat Treatment Machine 5KW , PWHT Machine
Place of Origin ShenZhen China
Brand Name Canroon
Certification CE ISO9001:2008
Model Number CR2000-005A-14T
Minimum Order Quantity 1SET
Price 5000USD
Packaging Details depend on our customers
Delivery Time depend on the order and destination
Payment Terms T/T,L/C
Supply Ability 500sets/month
Product Details
Name Medium Frequency Induction Heating Machine Size Portable
Rated Capacity 3.5KW Input Power 230V , 1-Phase , 50HZ
Temperature Recorder 2 Channel Temperature Recorder Cooling Mode Air Cooled
High Light

medium frequency induction heating machine


medium frequency induction heating equipment

Product Description

Portable Medium Frequency Induction Heat Treatment Machine 5KW , PWHT Machine


Quick Detail:



Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-005A-14T



Rated Capacity:5KW

Rated Duty Cycle:5KW

Dimensions:H:300MM W:245MM D:550MM


Usage: Brazing, Stress relieving and preheating,PWHT

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:230V;1-Phase,50HZ

Temperature recorder:2 Channel temperature recorder





The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.





With the introduction of the Induction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

  • Welding fabrication and construction;
  • Preheating of welds;
  • Post-weld heat treatment;
  • Coating removal;
  • Shrink Fit and so on





Input Amperes at Rated Output


Thermal conversion efficiency

More than 90%

Maximum Rated output


Cooling Mode

Air cooled

Input power


Rated Output

5KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder


Control Model

Digital Control


Series Resonance


Max 1450°F


H:300MM W:245MM D:550MM


By sea or By Air




12 Months



Competitive Advantage:


1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.
