Portable High Frequency IGBT Induction Annealing Machine Metal Heat Treatment Equipment China Supplier
Product Details
| Product Name | Induction Annealing Machine | Power | 10-50KVA |
|---|---|---|---|
| Other Model | 60-300KVA | Application | Induction Annealing, Metal Heat Treatment |
| Heating Method | IGBT Induction Heating Machine | Cooling | Water Cooling |
| Highlight | low frequency induction heating,induction heating equipment |
||
Product Description
Portable High Frequency IGBT Induction Annealing Machine
Power:10-50kw
Applications:metal annealing, also efficient for brazing, hardening, curing, etc
Frequency:10-40kHZ
Voltage: 3phase, 380-460V, 50/60HZ,
Certificates: CE, ISO, etc
Cooling system: water cooling
Application industries: aviation, metallurgy, tools and equipment, automotive, etc
Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc
Features: portable, high efficient, modular design, digital control, etc
Technical Parameters of portable high frequency IGBT induction annealing machine:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase /400V (±20%) 50/60Hz |
10KVA | 15A | 10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A | ||||
| CR2100-020B-14TW1 | 20KVA | 30A | ||||
| CR2100-025B-14TW1 | 25KVA | 37A |
4~6 bar ≥19L/min |
|||
| CR2100-030B-14TW1 | 30KVA | 45A | ||||
| CR2100-035B-14TW1 | 35KVA | 53A | ||||
| CR2100-040B-14TW1 | 40KVA | 60A | ||||
| CR2100-050B-14TW1 | 50KVA |
75A |

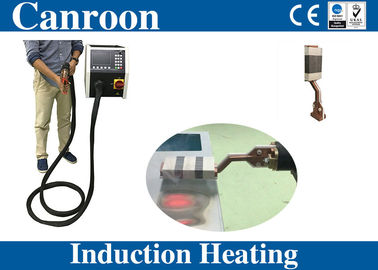

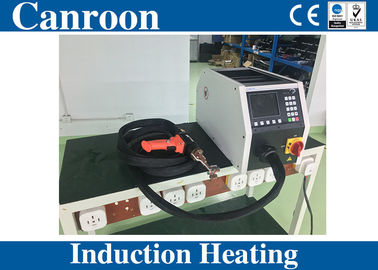

Pictures of portable high frequency IGBT induction annealing machine:
Canroon is China leading manufacturer of induction heating machine. Our CR2100 series can be used for metal heat treatment like brazing, annealing, hardening, etc.
Following is portable type, 10-50KVA, IGBT induction heating, digital control, modular design, handheld coaxial transformer, detachable inductor, etc
Application details of portable high frequency IGBT induction annealing machine:
Our portable annealing machine can be applied in metal annealing, soft induction cable, HHT, detachable inductor, all make it easier for operation in real working site. Also continuous working can save much time and energy.
HHT(hand held transformer)
Inductors, can be customized:
Advantages of portable high frequency IGBT induction annealing machine:
· High Temp. & Fast Heating
Able to reach >1000℃ within seconds.
· Accurate Control
The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.
· Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
· Easy Maintenance
Due to modular design, the maintenance will be easy and low-cost.
· Self-Diagnosis
Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.
