Mini Size Light Fine Wire Thermocouple Welding Machine With Carring Case
  • Mini Size Light Fine Wire Thermocouple Welding Machine With Carring Case
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE; ISO9001:2008
Model Number CR100-000-AA1
Minimum Order Quantity 1SET
Packaging Details depend on our customers
Delivery Time A week after confirmed payment
Payment Terms T/T
Supply Ability 100 Piece/Pieces per Week
Product Details
Accumulator Capacity 3.2Ah Charge Voltage 100-240VAC, 50/60Hz
Automatic Spot Welding Time 3 Seconds Recover / Charging Time 10 Seconds
Thermocouple Size 0.5mm/0.7mm/1.0mm
Highlight

thermocouple wire welder

,

thermocouple welding machine
Product Description

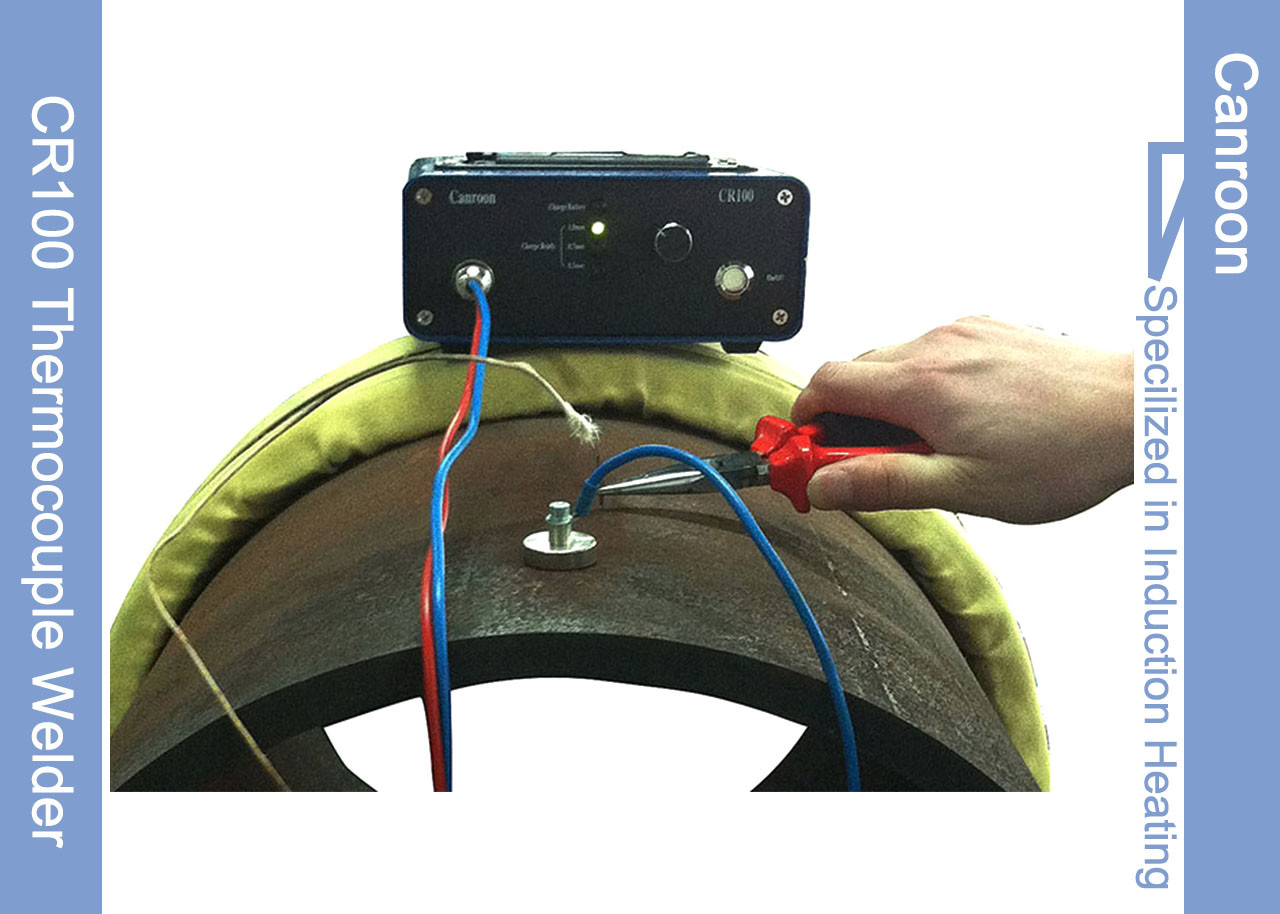

Mini Size Light Fine Wire Thermocouple Welding Machine With Carring Case





CR100 portable thermocouple welder was designed and manufactured by Canroon, as an important optional accessories of our CR2000 series induction heating system.



This portalbe spot welding machine ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.



It can also be used for welding of metal workpiece and other metal material.



Feastures:

  • small size, portable type;
  • light and handy
  • fast spot welding;
  • automatic charging;
  • easy operation interface;



Specification:



Charge Voltage 100-240VAC, 50/60Hz
Accumulator Working Voltage 12VDC 50/60Hz
Accumulator Capacity 3.2Ah
Automatic Spot Welding time 3 seconds
Recover / Charging time 10 Seconds
Charging State Display LED
Max. Penetration Depth <0.2mm
Max. Heating Penetration Depth <0.3mm



Size & Weight:



Hight Width Depth Weight
74mm 185mm 188mm 2.7kg



Package:



Hand-held Outdoor Case / Safety Equipment Case

Weight: 5.6KG



Features:

  • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
  • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
  • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
  • Strong electric storage ability enable 2000 times of using after fully charged;
  • Just 10 seconds for circuit recovery after one time spot welding;
  • Charging limitation, no need for watching when charging;
  • LED display enables visual run state management;
  • Protection for over discharge.
