Low Price Induction Heating Equipment for PWHT in Power Plant

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

Low Price Induction Heating Equipment for PWHT in Power Plant

Low Price Induction Heating Equipment for PWHT in Power Plant
Low Price Induction Heating Equipment for PWHT in Power Plant Low Price Induction Heating Equipment for PWHT in Power Plant Low Price Induction Heating Equipment for PWHT in Power Plant Low Price Induction Heating Equipment for PWHT in Power Plant

Large Image :  Low Price Induction Heating Equipment for PWHT in Power Plant

Product Details:
Place of Origin: Shenzhen china
Brand Name: canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 500 Sets/Month
Detailed Product Description
Input Power: 40kw, 80kw, 120kw Temperature: Max 1450°F
Transportation: By Sea Or By Air Design: Modular Deisgn
Control Model: Digital Control Rated Output: 3-35kHZ
Applications: Pipes Post Weld Heat Treatment/PWHT Machine Name: Induction Heating Equipment In Power Plant
High Light:

stress relieving machine

,

post weld heat treatment equipment

Low Price Induction Heating Equipment for PWHT in Power Plant






Brief introduction of Canroon low price induction heating equipment for PWHT in power plant:



Induction heaitng equipment is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.



We have portable type with 5kw, 10kw, for movable type, we have 40kw, 80kw, 120kw. For 40kw induction heating equipment applied in PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most. It can heat both carbon steel pipes and stainless steel pipes.



Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

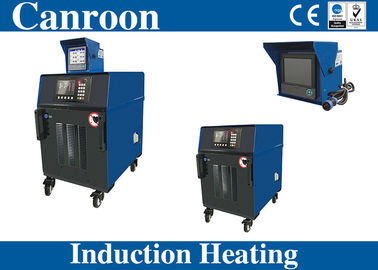

Overall pictures of Canroon low price induction heating equipment for PWHT in power plant:

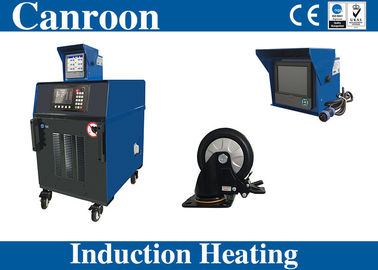

Canroon induction heating equipment is designed and manufactured with high quality materials, it has beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display panel to show working details, six thermocouple connections to record the temperatures, and remote control for working site accordingly.

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes

Technical parameters of low price induction heating equipment for PWHT in power plant:



Model Temperature Input Power Input Output Dimension

Weight



CR2000-040 788℃ 40KVA

3-phases

380V-460V

50-60Hz

50-61A

35KW

3-35KHz

Duty Cycle: 100%

H:762mm

W:544mm

L:730mm

115kg
CR2000-080 788℃ 80KVA

3-phases

380V-460V

50-60Hz

100-121A

72KW

2.3-35KHz

Duty Cycle: 100%

H:845mm

W:592mm

L:801mm

190kg
CR2000-120 788℃ 120KVA

3-phases

380V-460V

50-60Hz

150-181A

108KW

2.5-35KHz

Duty Cycle: 100%

H:845mm

W:592mm

L:801mm

190kg






Application details of low price induction heating equipment for PWHT in power plant:



Our induction heating equipment is widely applied in power plant PWHT:



Low Price Induction Heating Equipment for PWHT in Power Plant 1

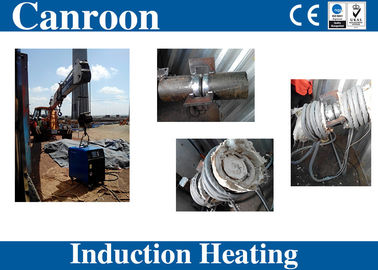

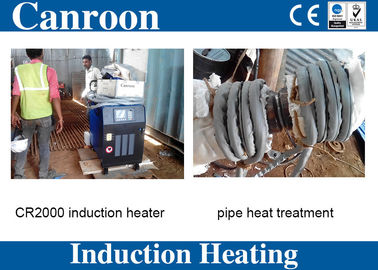

Some pictures to show the details of the applications, insulation blanket to keep heat, induction cable to suit the workpiece, the welding process is very efficient and result is satisfactory.



Low Price Induction Heating Equipment for PWHT in Power Plant 2





PWHT curve:

40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment




Features of low price induction heating equipment for PWHT in power plant:



  • Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.

  • Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.






Accessories of low price induction heating equipment for PWHT in power plant:



We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.



Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
