Injection Extruder Induction Heater Machine 10Kw For Superheated Steam
Product Details
| Power | 10kw-50kw | Output Frequency | 10-40kHZ |
|---|---|---|---|
| Voltage | 3 Phase, 380V-460V, 50/60HZ | Machine Size | Samll And Portable |
| Machine Weight | Light And Portable | Applicable Industries | Building Material Shops, Machinery Repair Shops |
| Control Mode | Digital Control, Modular Deisgn | Life Time | > 50000Hrs |
| Key Selling Points | Accurate Temperature Control | Core Components | Other, Engine |
| High Light | Induction Heating Equipment Air Cooled,3 phase 10Kw Induction Heater,Superheated Steam Induction Heater Machine |
||
Product Description

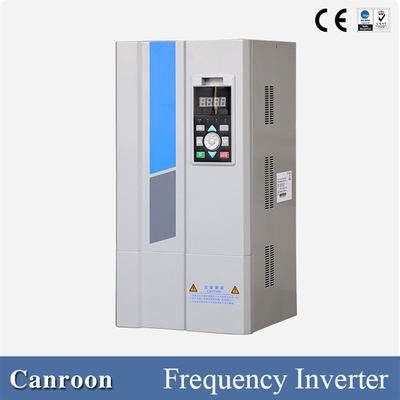

Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
CR1300 series is mainly used in all kinds of plastic machinery (such as: injection molding machine, extruder, granulator,
film blowing machine, wire drawing machine energy-saving transformation), chemical fiber equipment, food and medicine
machinery, steam and hot air preparation and other industries.
Five heating modes Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
Curve heating mode:
Set the heating mode (F008) as 1, that is, set the curve heating mode. The initial power (F023) and heating
time (F022) of the curve can be set to make it heat according to the predetermined curve.
Curve heating mode can set the curve heating time and starting power. Curve heating time is the time from
starting power to the maximum power. The power increases with the slope as a multiple of the maximum
power/starting power. When the maximum power is reached, the heat is heated at the maximum power.
The curve heating model is shown in the figure below:
Application environment Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
| Working temperature | -20℃~+40℃ |
| Relative humidity | Less than 90%RH, no condensation |
| Altitude | Less than 1000m (when higher than 1000m, the power shall be reduced by 15% for each 1000m rise) |
| Storage temperature | -30℃~+60℃ |
| others |
1.Please install in the place where it is impossible to be subjected to intense vibration and impact; 2.Please install it away from electromagnetic radiation sources. 3.Please install in the place without dust pollution and explosion risk; 4.Do not install in direct sunlight, oil mist, steam, salt environment. |
Features Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
| Overload protection | 120% per minute 150% instant protection |
| startup time | < 0.2S |
| Electro-thermal conversion | > 95% |
| Effective power | > 85% |
| The service life | > 50000Hrs |
| Protection detection | < 10μS |
| Others | This product should not be used to endanger personal safety or other occasions with special safety requirements |
Specification Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
| Model | Input | Output | Load inductance range(uH) | |||
| Voltage range and frequency | Power | Current | Minimum line diameter(mm²) | frequency | ||
| CR1300-005D-24TF | 3 pahse 400V (±20%) 50HZ/60HZ | 5KW | 6-9A | 6 | 8~35KHZ | 60-200 |
| CR1300-005A-24TF | 5KW | 6-9A | 6 | |||
| CR1300-008A-24TF | 8KW | 10-14A | 10 | |||
| CR1300-010A-24TF | 10KW | 12-18A | 10 | |||
| CR1300-015A-14TF | 15KW | 18-27A | 10 | 8~25KHZ | 80-135 | |
| CR1300-020A-14TF | 20KW | 24-36A | 16 | |||
| CR1300-025A-14TF | 25KW | 30-45A | 16 | 80-160 | ||
| CR1300-030A-14TF | 30KW | 36-54A | 16 | |||
| CR1300-035A-14TF | 35KW | 42-63A | 25 | 60-160 | ||
| CR1300-040A-14TF | 40KW | 48-72A | 25 | |||
| CR1300-050A-14TF | 50KW | 60-90A | 35 | |||
| CR1300-060A-14TF | 60KW | 72-108A | 35 | 60-135 | ||
| CR1300-080A-14TF | 80KW | 96-144A | 50 | |||
| CR1300-100A-14TF | 100KW | 120-180A | 75 | |||
Application Cases Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
Packaging Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements
Our Services Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
1. keep the quality first and make more products benefit to our customers' need
2.about our Online/Sale service
super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.
3.After-sale service
1)Assistance to your project
2)Repairing and maintenance if any problem occur in the warranty.
3)Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told to us, and we will try our best to support you.
4.Other cooperation service
1)Technology knowledge share
2)Factory building advising
3)Business expansion advising
Shipping ways Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
FAQ Injection Extruder Induction Heaters Air-Cooled Controller 10Kw Induction Heater For Superheated Steam
1. Are you a trading company or manufacturer?
We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.
2. What's the delivery time for sample and bulk order?
Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.
3. What's your quality guarantee period?
12 months warranty
4. I am not so familiar with your machine now. I am not sure i can use it well if i buy it from you?
Dont worry about this any more. With the machine,we will send you a brochure with detail information with
our machine operation. If you need, Video is also available.
