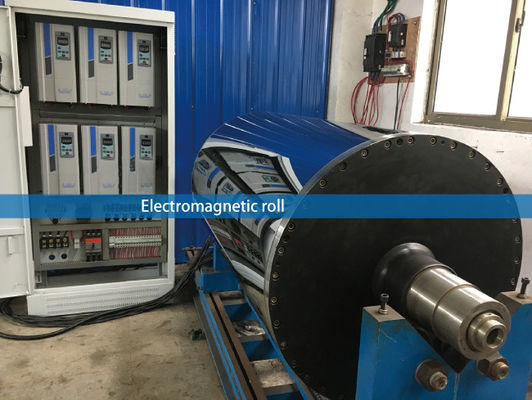

Industrial Pipe Heating System: 5-100KW Electromagnetic Induction Equipment for Anti-Condensation and Freeze Protection

5-160KW Electromagnetic Induction Heating Equipment For Industrial Heat System

CR1300 Series Intelligent Induction Heating Power Supply: Technical Overview

The CR1300 series is an intelligent induction heating power supply designed through the integration of modern industrial design philosophy and future industrial intelligence concepts. This product line provides an electromagnetic induction heating solution with exceptional controllability for industrial thermal systems.

I. Key Technical Characteristics
The defining feature of this equipment is its superior controllability, manifested in the following aspects:

• Programmable Control: Enables the execution of complex process routines, meeting demands for precise heating cycles.

• Non-Contact Heating: Operates on the principle of electromagnetic induction, eliminating contamination and wear associated with traditional contact-based heating methods.

• Broad Adaptability: Offers effective heating performance for workpieces of diverse materials and geometries, ensuring wide application scope.

• High Efficiency & Energy Density: The heating process minimizes thermal loss, concentrating energy for high efficiency and significant energy conservation.

• Online Heating Capability: Can be integrated into production lines for real-time, online heating of materials, thereby boosting overall productivity.

II. Technical Implementation
To achieve the above performance, the product employs the following key technologies:

• An efficient air-cooled structural design for long-term stable operation.

• An IGBT full-bridge inverter topology combined with Phase-Shift PWM control technology for high-efficiency power conversion.

• Automatic current-frequency tracking technology ensures the system consistently operates at its optimal point.

• Stepless power output adjustment from 0% to 100% provides precise control.

III. Primary Application Fields
This series is primarily applied in:

• Plastic Machinery: Energy-saving retrofits and upgrades for equipment such as injection molding machines, extruders, pelletizers, film blowing machines, and wire drawing machines.

• Chemical Fiber Equipment, Food & Pharmaceutical Machinery, Steam & Hot Air Preparation, and other industrial scenarios requiring precise thermal management.

Quick Detail:

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR1300-005A

Power : 5~100kw

Voltage : 3-phase 380-460V

startup time :< 0.2S

Electro-thermal conversion : > 95%

Effective power :> 85%

Usage : Industrial Heat System

Storage temperature :-30℃～+60℃

Overload protection :120% per minute 150% instant protection

Certification:CE ISO9001:2015

Main functions of 5-160KW Electromagnetic Induction Heating Equipment For Industrial Heat System

1.Start mode is optional
Remote boot (external terminal boot and 24V pulse boot), keyboard boot.

2.Perfect protection function
Overheat, overvoltage, undervoltage, lack of phase, overcurrent (including hardware overcurrent protection,

software overcurrent protection, VCE protection) and other protection, and temperature sensor fault detection function

3.Load inductance detection function
Can measure the size of the load inductance, when the inductance is too large or too small, alarm and start the

corresponding protection function.

4.Various heating modes
Maximum power heating, curve heating, twenty section heating, analog amount (0 ~ 10V /4 ~ 20mA) control

heating and other heating modes

5.Run limited function
The limited run time can be set as required.

6.Parameter storage function
Instant storage of fault information; Power consumption, accumulated running time and so on are stored every 2 hours.

7.External fault signal input and local fault signal output.

Enterprise introduction

Canroon is a remarkable energy saving solutions provider,whose products and solutions are widely used

in shipbuilding, aviation, automotive, metallurgy, chemical engineering, petroleum pipeline construction,

new materials, new energy and other fields.
Canroon has a professional R & D team, committed to convert its wisdom into leading products and services

to meet the needs of different customers, continuing to create values for customers.
Canroon has been striving to promote the sustainable and healthy development of China's energy conservation

and emissions reduction career, with comprehensive advantages in the field of power electronics.We aim to

become the industry leader and our duty is to improve the earth's.

Technical parameters of 5-100KW Electromagnetic Induction Heating Equipment For Industrial Heat System

Application details of 5-100KW Electromagnetic Induction Heating Equipment For Industrial Heat System

Company information:

Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.

3.After-sale service

Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and

clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to

us, and we will try our best to support you.

FAQ:

1. Are you a trading company or manufacturer?

We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.

2. What's the delivery time for sample and bulk order?

Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.

3. What's your quality guarantee period?

12 months warranty

4. Can I get a lower price if I order large quantities?

Of course. Cheaper price with larger quantity

5. can you customize the machine for us?

Yes, of course, just tell me your detailed requirement, so I can suggest you most suitable project.
