Power | 40kw, 80kw, 120kw | Series | CR2000 Series |
---|---|---|---|
Application | Joint Anti-corrosion Coating | Industry | Oil And Gas Pipeline |
Function | Preheating | Inductor | Splite Core Type Inductor |
Other Applications | Pipe Welding Preheat, PWHT/Post Weld Heat Treatment | Features | Digital Control, Modular Design, Fast And Uniform Heating |
Highlight | induction heat treatment machine,heat treatment machine |
Induction Heating Equipment for Pipe Joint Anti-corrosion Coating in Oil and Gas Pipeline
Our CR2000 series induction heating equipment can be used for joint anti-corrosion coating in offshore platform, oil and gas pipeline construction, power plant, etc,

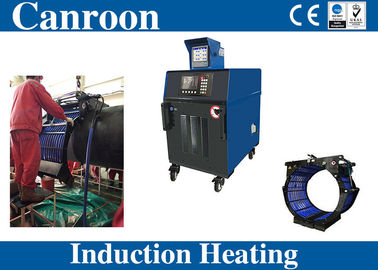

Pictures of induction heating equipment:
digital control for precise and stable working
modular design for easy maintenance and repair
self fault feedback for machine protection and longer service life
6 thermocouple inputs for timely temperature control
display panel for easy operation
universal wheels for high movability
Parameters of induction heating equipment:
Model
|
Temperature | Input Power | Input | Output | Dimension | Weight |
CR2000-040 | 788℃ | 40KVA | 3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
CR2000-080 | 788℃ | 80KVA | 3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
CR2000-120 | 788℃ | 120KVA | 3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
as for the inductor, we can supply two types: manual split core inductor and hydraulic split core inductor.

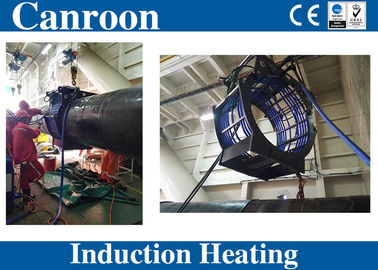

Working site of the induction heating equipment applied for joint anti-corrosion coating with manual split core inductor:
suitable for small size pipes, and operated by human force, lower cost, induction cable is equally and regulatedly arranged and winded, save time and energy for winding the induction cables.

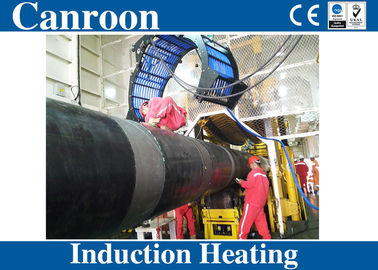

Working site of the induction heating equipment applied for joint anti-corrosion coating with hydraulic split core indcutor:
this type inductor has the hydraulic system, so you can lift it or put down according to your pipes by remote controller, it is suitable for bigger size pipes and biger projects, can save much labor force, energy, time, etc, high efficient, and uniform heating,
Accessories to match our induction heating equipment for the whole system:
We can supply the whole system for this pipe heat treatment to save your time and energy for finding the accessories, like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
Product Features:
- Friendly Interface and Precise Control
The control board offers multiple heating pattern to choose such as preheat, PWHT, bakeout, custom, so the heating process can be controlled precisely by determining parameters of each segment such as temperature, time, temperature-time rate.
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is much faster than conventional processes due to the method of applying heat, reducing cycle time.
- 6 Channel Thermocouple Input
Up to 6 channel thermocouple input offers a better temperature monitoring and control of the heating zone.
- Fault Recording and Protection
Fault code will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output and short out.
- Abundant Accessories
We offer different sizes of output induction cable, output extension cable, insulation blanket, remote switch, TC extension cable, digital temperature recorder, spot welding machine, etc., just for the convenience of your application and engineering project. You can get the whole system.
- Flexible Custom Function
The custom function allows you to set 3 curves at most and up to 10 segments for each curve to control the heating process automatically. Thus brings the benefit of wide applicability and precise control.
Competitive Advantages:
- Perfect Mobility
Optional running gear is offered, which is easy to install or dismount.
- On-board Temperature Control
On-board temperature control provides for manual or temperature based programming in a simple-to-learn operator interface.
- Easy to set-up
The flexible induction cable fits a variety of pipe diameters and plate length.
- Improved Working Environment
Welders are not exposed to open flame, explosive gases and hot elements associated with fuel gas heating and resistance heating, and fire risk is much lowered.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, and uniform temperature throughout the heating zone is realized.
- Multiple thermocouple input control
The heating process control is based on the TC of highest temperature during heating and of the lowest temperature during cooling.
- Low consumable costs
No fuel costs and minimal insulation costs. Insulation blanket is reusable and may be used 50 time or more, reducing costs of disposal and replacement.
