Home ProductsPortable Induction Heating Machine

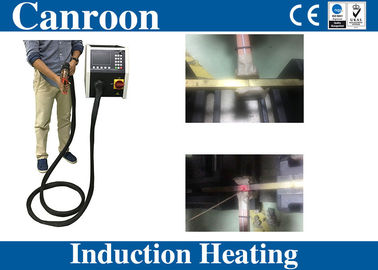

High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel

High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel
High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel

Large Image :  High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case or as you require
Delivery Time: within 7 days if available in stock
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Power: 10-50kw Frequency: High Frequecy, Intermediate Frequency
Application: Metal Heat Treatment, Induction Brazing, Hardening, Etc Efficiency: High Efficiency
Control Mode: Digital Control Resonance: Series Resonance
Metal: Copper, Steel, Brass, Aluminum, Etc Warranty: 12 Months
High Light:

induction heater machine

,

induction heat treating equipment



High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing






Brief introduction of high frequency electromagnetic IGBT induction heating equipment for brazing:



Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor, soft induction cable, water cooling system,



High Frequency Electromagnetic IGBT Induction Heating Equipment for Brazing of Brass Copper Steel 0

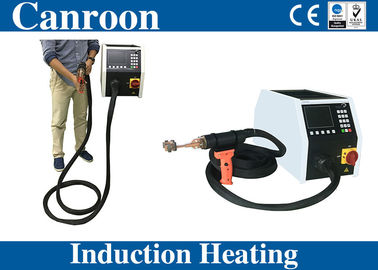

Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass






Application details of high frequency electromagnetic IGBT induction heating equipment for brazing:



Materials:

All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.

Applications:

Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.

Workpieces:

<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.

<> Heat exchanger: copper tube;

<> Automobile die;

<> Crank shaft;

<> Oil&gas pipe.



see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, etc

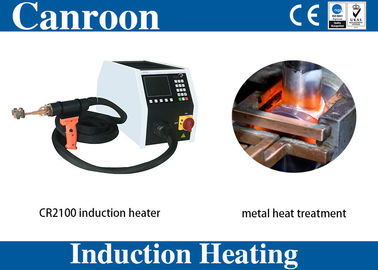

Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass



Following is induction brazing of brass bar with Cu-Ag alloy as the welding solder to make slip ring for wide applications.

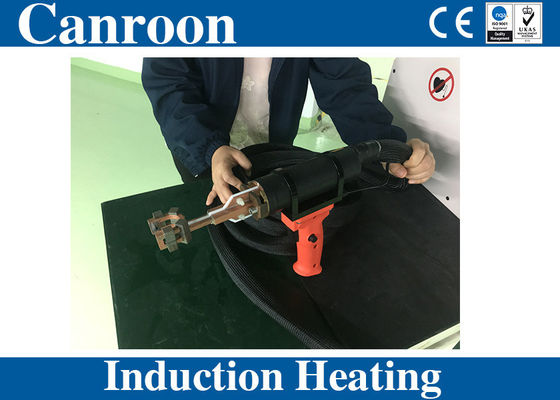

Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass




Technical Parameters of high frequency electromagnetic IGBT induction heating equipment for brazing:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B-14TW1 3-phase
/400V
(±20%)
50/60Hz
10KVA 15A 10~40KHZ

4~6 bar

≥12L/min

L: 581mm

W: 283mm

H: 334mm

CR2100-015B-14TW1 15KVA 22A
CR2100-020B-14TW1 20KVA 30A
CR2100-025B-14TW1 25KVA 37A

4~6 bar

≥19L/min

CR2100-030B-14TW1 30KVA 45A
CR2100-035B-14TW1 35KVA 53A
CR2100-040B-14TW1 40KVA 60A
CR2100-050B-14TW1 50KVA

75A






Product features:



1. High efficient: thermoelectric conversion efficieny: >85%;



2. Enviromental friendly: zero pollution, zero discharge;



3. Intelligent: PID temperature closed-loop control, precise temperature control;



4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.



5. Operation interface: humanized MMI, chinese/ English available;



6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;



7. Automation integration: Quickly and easily integrated into automated production lines;



8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;




Company information:

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
