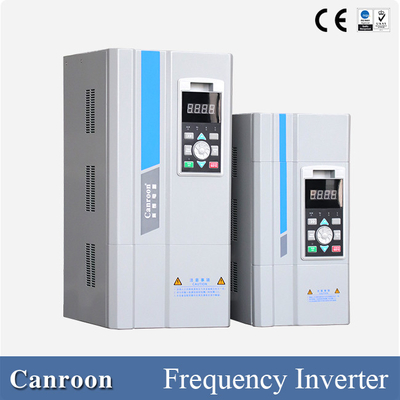

Electric Magnetic Induction Heating Machine 5kw 10kw 40kw High Frequency
  • Electric Magnetic Induction Heating Machine 5kw 10kw 40kw High Frequency
  • Electric Magnetic Induction Heating Machine 5kw 10kw 40kw High Frequency
Place of Origin Guangdong, China
Brand Name Canroon
Certification ISO, CE
Model Number CR2100
Minimum Order Quantity 1
Price FOB Shenzhen
Packaging Details packing in wooden case.
Delivery Time within7 days if available in stock
Supply Ability 500 Set/Sets per Month
Product Details
Power 10kw-50kw Output Frequency 10-40kHZ
Voltage 3 Phase, 380V-460V, 50/60HZ Machine Size Samll And Portable
Machine Weight Light And Portable Applicable Industries Building Material Shops, Machinery Repair Shops
Inductor Can Be Customized Power Source Electric
Key Selling Points Energy Saving Place Of Origin Guangdong, China
Highlight

40kw Induction Heating Machine

,

3 phase High Frequency Induction Heating Machine

,

400V industrial induction heating machine
Product Description

Induction heating machine power supply high frequency electric magnetic 5kw 10kw 40kw

CR1300 series is mainly used in all kinds of plastic machinery (such as: injection molding machine, extruder, granulator,

film blowing machine, wire drawing machine energy-saving transformation), chemical fiber equipment, food and medicine

machinery, steam and hot air preparation and other industries.

Electric Magnetic Induction Heating Machine 5kw 10kw 40kw High Frequency

Main functions Induction heating machine power supply high frequency electric magnetic 5kw 10kw 40kw

1. Start mode is optional

Remote boot (external terminal boot and 24V pulse boot), keyboard boot.

2. Perfect protection function

Overheat, overvoltage, undervoltage,lack of phase,overcurrent (including hardware overcurrent protection, software

overcurrent protection, VCE protection) and other protection, and temperature sensor fault detection function

3. Load inductance detection function

Can measure the size of the load inductance,when the inductance is too large or too small, alarm and start the corresponding protection function.

4. Various heating modes

Maximum power heating, curve heating, twenty section heating,analog amount (0 ~ 10V /4 ~ 20mA) control heating and other heating mode

5. Run limited function

The limited run time can be set as required

6. Parameter storage function

Instant storage of fault information; Power consumption, accumulated running time and so on are stored every 2 hours

7. External fault signal input and local fault signal output.

Application environment Induction heating machine power supply high frequency electric magnetic 5kw 10kw 40kw

Working temperature -20℃~+40℃
Relative humidity Less than 90%RH, no condensation
Altitude Less than 1000m (when higher than 1000m, the power shall be reduced by 15% for each 1000m rise)
Storage temperature -30℃~+60℃
others

1.Please install in the place where it is impossible to be subjected to intense vibration and impact;

2.Please install it away from electromagnetic radiation sources.

3.Please install in the place without dust pollution and explosion risk;

4.Do not install in direct sunlight, oil mist, steam, salt environment.

Features Induction heating machine power supply high frequency electric magnetic 5kw 10kw 40kw:

Overload protection 120% per minute 150% instant protection
startup time < 0.2S
Electro-thermal conversion > 95%
Effective power > 85%
The service life > 50000Hrs
Protection detection < 10μS
Others This product should not be used to endanger personal safety or other occasions with special safety requirements


Specification Induction heating machine power supply high frequency electric magnetic 5kw 10kw 40kw

Model Input Output Load inductance range(uH)
Voltage range and frequency Power Current Minimum line diameter(mm²) frequency
CR1300-005D-24TF 3 pahse 400V (±20%) 50HZ/60HZ 5KW 6-9A 6 8~35KHZ 60-200
CR1300-005A-24TF 5KW 6-9A 6
CR1300-008A-24TF 8KW 10-14A 10
CR1300-010A-24TF 10KW 12-18A 10
CR1300-015A-14TF 15KW 18-27A 10 8~25KHZ 80-135
CR1300-020A-14TF 20KW 24-36A 16
CR1300-025A-14TF 25KW 30-45A 16 80-160
CR1300-030A-14TF 30KW 36-54A 16
CR1300-035A-14TF 35KW 42-63A 25 60-160
CR1300-040A-14TF 40KW 48-72A 25
CR1300-050A-14TF 50KW 60-90A 35
CR1300-060A-14TF 60KW 72-108A 35 60-135
CR1300-080A-14TF 80KW 96-144A 50
CR1300-100A-14TF 100KW 120-180A 75

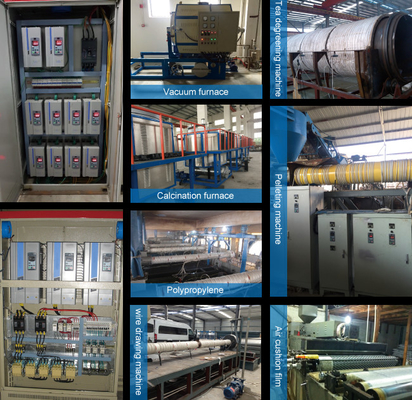

Application Cases

Electric Magnetic Induction Heating Machine 5kw 10kw 40kw High Frequency

Packaging:

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements



Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

1)super and solid quality

2)Fast and punctual delivery

3)Standard export package or as customers’ need.

3.After-sale service

1)Assistance to your project

2)Repairing and maintenance if any problem occur in the warranty.

3)Installation and clerks training

4)Spare and wearing parts for free or with big discount

5)Any feedback of machines can be told to us, and we will try our best to support you.

4.Other cooperation service

1)Technology knowledge share

2)Factory building advising

3)Business expansion advising



Shipping ways

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Customers specifying freight forwarders for negotiable shipping nethods.

4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.



FAQ:

1. Are you a trading company or manufacturer?
We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.

2. What's the delivery time for sample and bulk order?

Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.

3. What's your quality guarantee period?

12 months warranty

4. I am not so familiar with your machine now. I am not sure i can use it well if i buy it from you?
Dont worry about this any more. With the machine,we will send you a brochure with detail information with

our machine operation. If you need, Video is also available.





Inductors are important part of induction heater, it is precisely designed, manufactured

by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your workpiece:
