Others | This Equipment Shouldn't Be Used In Places Endangering Personal Safety Or Have Speciasafety Requirements. | Overload Protection | Minute For 120%: Instant Protection For 150% |
---|---|---|---|
Service Life | >50000Hrs | Storage Temperature | 20°C~+60°C |

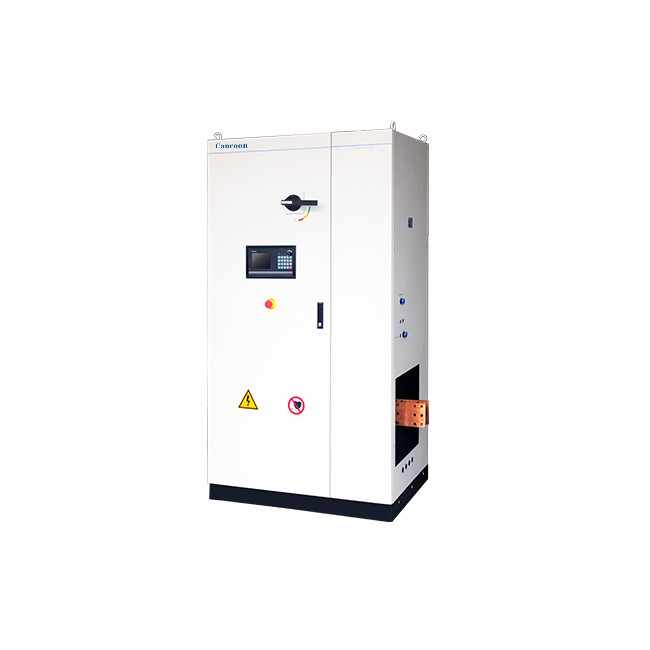

Product Name | CR1000 Series Intelligent Induction Heating System | Operating Temperature | -10°C~+50°C |
Electricity-heat Transformation Rate | > 95% | Start Time | <0.2S |
Highlight | Industrial Induction Heating Machine CE,CE High Frequency Induction Heating Machine,Durable High Frequency Induction Heating Machine |
Product Overview
CV900 series frequency inverter included advanced technology of flux vector control. High torque output
of full requency, quick response, perfect load adaptability, high control precision of speed and good
reliability, all of which ensure it to meet high requirement of various field application.
Product Features
4 Control Modes |
V/F Control advance V/F control V/F separation control electric current vector control |
Ultralow Noise |
carrier freq. modulation: 1~16KHz |
High Running Freq |
max. 3000Hz |
Control Protection |
timely & reliable |
Excellent Torque Outpuit |
V/F control (150% rated torque in 30Hz) Electric current vector control (180% rated troque in 0.5Hz) |
High Overload Capacity |
last for 60s with 150% rated torque |
Communication Function
Modbus RTU mode: transfer characters with higher density compared with ASCII mode, given the condition of the same baud rate.
Tyical Function
- Speed & Torque Control
- V/F Separation Control
- Swing Frequency Control
- Length Control
- PID Control
Specifications
CV900 series VFD offers voltage classes of 1-phase 220V / 3-phase 380V, and adapts motor power range : 0.4~315KW.
Voltage Classes | Rated Power (KW) | Rated Output Current (A) | Adapted Motor (KW) |
220V 1-phase |
0.4 | 2.4 | 0.4 |
0.75 | 4.5 | 0.75 | |
1.5 | 7 | 1.5 | |
2.2 | 10 | 2.2 | |
380V 3-phase |
0.75 | 2.5 | 0.75 |
1.5 | 3.7 | 1.5 | |
2.2 | 5.0 | 2.2 | |
3.7 | 9 | 3.7 | |
5.5 | 13 | 5.5 | |
7.5 | 17 | 7.5 | |
11 | 25 | 11 | |
... |
... |
... |
|
280 | 520 | 280 | |
315 | 600 | 315 |
Basic Running Wiring Diagram

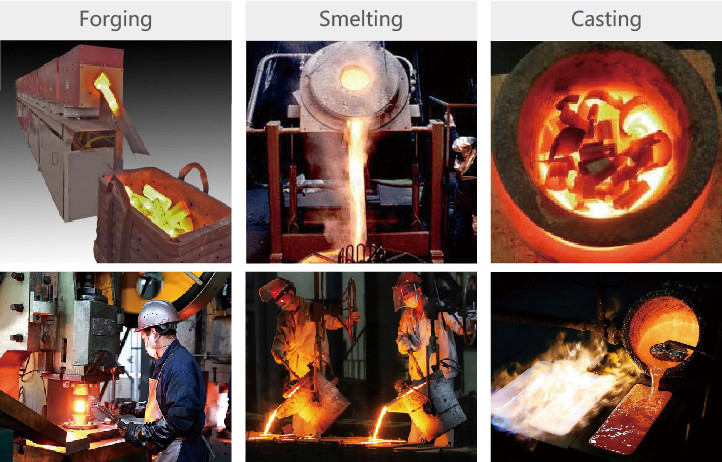

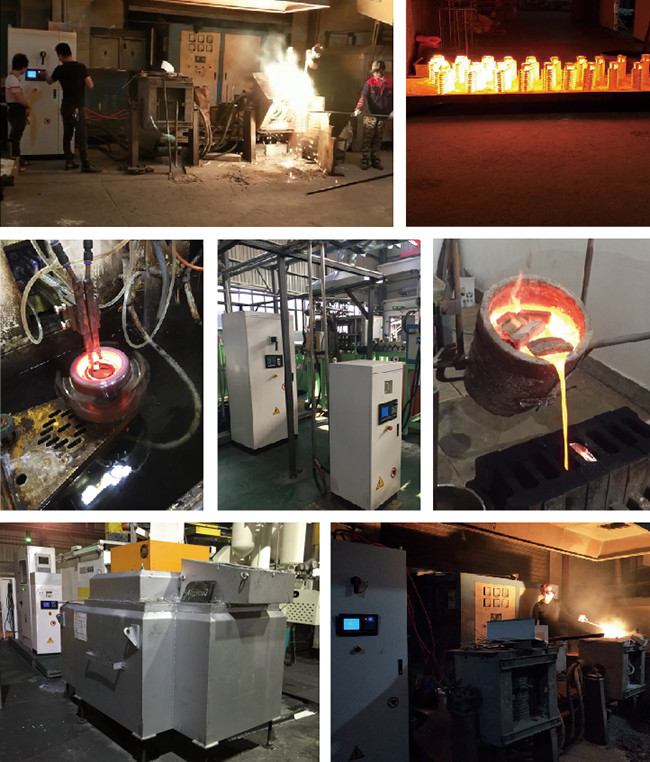

Application
Package in Canroon Factory
Exhibition
