5KW/10KW Pipe Welding PWHT Machine - Induction Heater for Pipeline Heat Treatment
| Place of Origin | Shenzhen china |
|---|---|
| Brand Name | canroon |
| Certification | CE ISO9001:2008 |
| Model Number | CR2000 |
| Minimum Order Quantity | 1 piece |
| Price | US $3000-4000 / Set, FOB |
| Packaging Details | wooden case or as you require |
| Delivery Time | within 5 days if available in stock |
| Payment Terms | L/C, T/T, Western Union, cash, etc |
| Supply Ability | 20 Piece/Pieces per Week |
Product Details
| Machine Name | Induction Heater/induction Heating Machine | Power | 5kw, 10kw, |
|---|---|---|---|
| Input Frequency | 50-60Hz | Machine Size | 263x302x535mm |
| Weight | 18.5kg | Cooling Method | Air Cooling |
| Heating Method | Induction Heating | Application | Pipes Heat Treatment: Preheating, Post Weld Heat Treatment |
| Application Details | PWHT For Flange Joint, Offshore Jacket Parts, Etc |
Product Description
Product Description
Canroon's portable induction heating systems (5kW/10kW) provide precision post-weld heat treatment (PWHT) for pipeline applications, including dehydrogenation (DHT) and intermediate stress relief (ISR). The compact 5kW unit handles pipes <200mm diameter/<25mm wall thickness, while the 10kW model processes 200-400mm diameter/<30mm walls, both achieving uniform heating up to 788℃ with ±5℃ accuracy. Engineered for oil & gas, offshore platforms and power plants, these air-cooled units feature Infineon IGBT technology, weigh just 14-18kg for field portability, and comply with ASME B31.3/API 1104 standards. Additional applications include weld preheating (50-300℃) and coating curing.
Details of Canroon portable induction heater/induction heating machine:
Front:
Back:
Technical parameters of induction heater/induction heating machine for PWHT:
| Model | Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-005B-12SF2 | 788℃ | 5kVA |
1-phase 220-240V 50-60Hz 20.8-22.7A |
4.2kW 5-60 KHz duty cycle 100% |
W:242.9mm H:295.2mm D: 504.4mm
|
16kg
|
|
CR2000-005B-14TF1
|
788℃ | 5kVA |
3-phase 380-460V 50-60Hz 6.3-7.6A |
4.5kW 3-35 KHz duty cycle 100% |
W:263mm H:302mm D:535mm
|
18.6kg
|
|
CR2000-010B-14TF1
|
788℃ |
10kVA
|
3-phase 380-460V 50-60Hz 12.5-15A
|
9kW 3-35 KHz duty cycle 100% |
W:263mm H:302mm D:535mm
|
18.6kg |

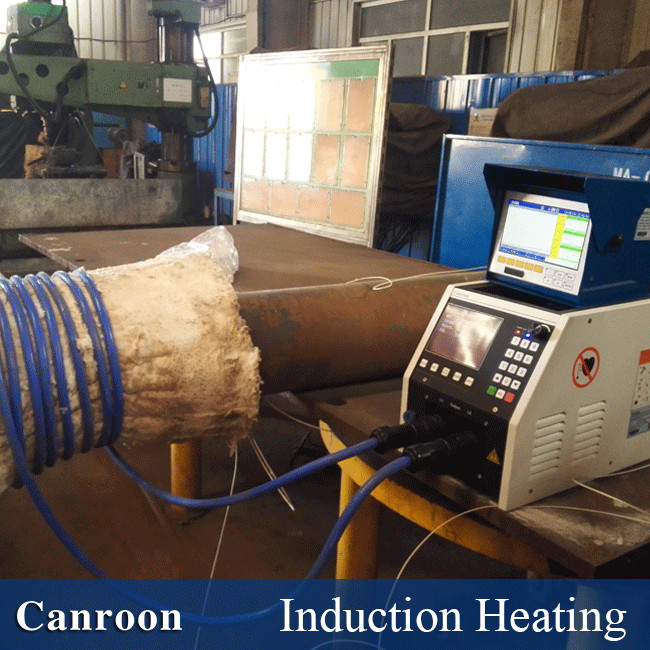

Application details of induction heater/induction heating machine in pipes PWHT(post weld heat treatment):
Accessories of induction heating machine:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
Stop Wasting Time & Money on Inefficient Heat Treatment!
Precision Matters
Printed PWHT reports ensure compliance with API/ASME standards
4 customizable temperature profiles for perfect weld conditioning
Maintenance Made Easy
Swap modules in minutes – no workshop downtime
Self-diagnosing system cuts repair costs by 40%
No More Guesswork
Fault codes tell you exactly what’s wrong (no need for a specialist)
Automatic shutdown protects your machine from costly damage
Why Our Technology Wins
→ 90% Energy Efficiency
→ Faster Heating
→ Even Heat Distribution
