5kw 10kw Pipe Welding PWHT Machine Induction Heater

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

5kw 10kw Pipe Welding PWHT Machine Induction Heater

5kw 10kw Pipe Welding PWHT Machine Induction Heater
5kw 10kw Pipe Welding PWHT Machine Induction Heater 5kw 10kw Pipe Welding PWHT Machine Induction Heater 5kw 10kw Pipe Welding PWHT Machine Induction Heater 5kw 10kw Pipe Welding PWHT Machine Induction Heater

Large Image :  5kw 10kw Pipe Welding PWHT Machine Induction Heater

Product Details:
Place of Origin: Shenzhen china
Brand Name: canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: US $3000-4000 / Set, FOB
Packaging Details: wooden case or as you require
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union, cash, etc
Supply Ability: 20 Piece/Pieces per Week
Detailed Product Description
Machine Name: Induction Heater/induction Heating Machine Power: 5kw, 10kw,
Output Frequency: 3-35kHZ Machine Size: 263x302x535mm
Weight: 18.5kg Cooling Method: Air Cooling
Heating Method: Induction Heating Application: Pipes Heat Treatment: Preheating, Post Weld Heat Treatment
Application Field: Offshore Platform, Oil And Gas Pipeline Construction, Power Station, Etc Application Details: PWHT For Flange Joint, Offshore Jacket Parts, Etc
High Light:

10kw PWHT Machine

,

Pipe Welding PWHT Machine

,

5kw Handheld Induction Heater

Induction heater/induction heating machine is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair. portable one has 5kw, 10kw, It is small in size, easy to take, and convenient to operate.



Suitable pipes size: When applied in pipe post weld heat treatment/PWHT, 5kw induction heater is suitable for pipe size with diameter of less than 200mm and thickness of less than 25mm, 10kw induction heater is suitable for pipe size with diameter of 200-400mm and thickness of less than 30mm, heating temperature should be lower than 788℃, fast and uniform heating.



Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.






Details of Canroon portable induction heater/induction heating machine:

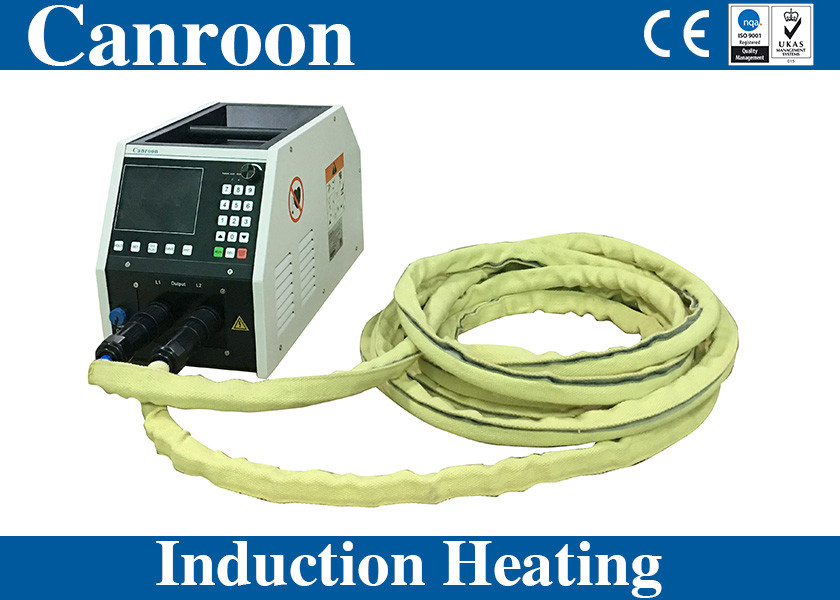

Front:



5kw 10kw Pipe Welding PWHT Machine Induction Heater 0

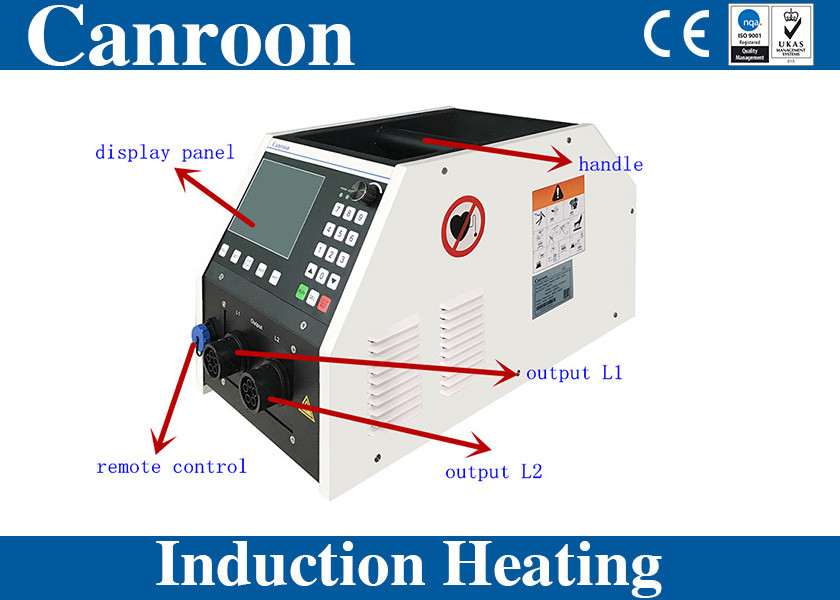

Back:

5kw 10kw Pipe Welding PWHT Machine Induction Heater 1

Technical parameters of induction heater/induction heating machine for PWHT:



Model Temperature Input Power Input Output Dimension Weight
CR2000-005B-12SF2 788℃ 5kVA

1-phase

220-240V

50-60Hz

20.8-22.7A

4.2kW

5-60 KHz

duty cycle 100%

W:242.9mm

H:295.2mm

D: 504.4mm



16kg



CR2000-005B-14TF1



788℃ 5kVA

3-phase

380-460V

50-60Hz

6.3-7.6A

4.5kW

3-35 KHz

duty cycle 100%

W:263mm

H:302mm

D:535mm



18.6kg



CR2000-010B-14TF1



788℃

10kVA



3-phase

380-460V

50-60Hz

12.5-15A



9kW

3-35 KHz

duty cycle 100%

W:263mm

H:302mm

D:535mm



18.6kg

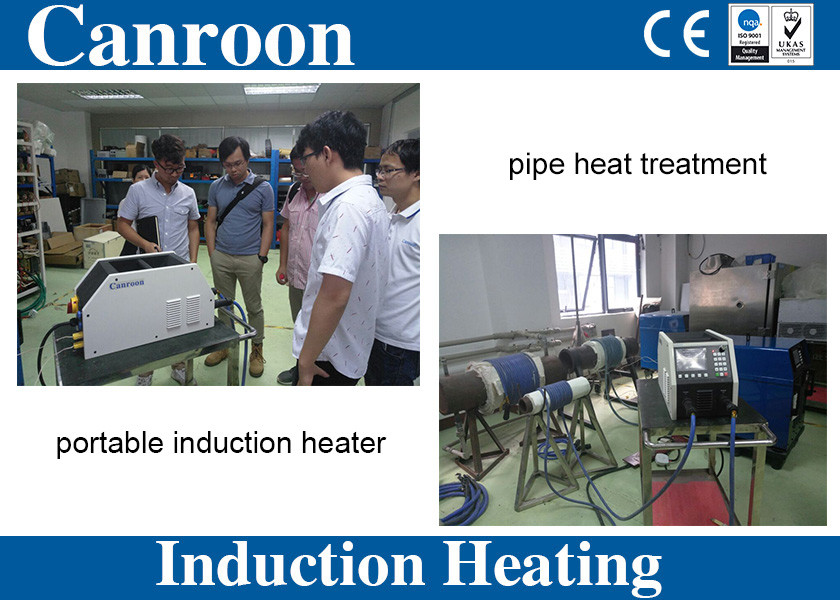

Application details of induction heater/induction heating machine in pipes PWHT(post weld heat treatment):



5kw 10kw Pipe Welding PWHT Machine Induction Heater 2

5kw 10kw Pipe Welding PWHT Machine Induction Heater 3




Accessories of induction heating machine:



We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.



5kw 10kw Pipe Welding PWHT Machine Induction Heater 4






Features of portable induction heating machine:

  • precise control

We have display board to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
