40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater

40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater
40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater

Large Image :  40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Power: 40kw, 80kw, 120kw Frequency: 3-35kHZ, Can Be Customized
Voltage: 380-460V, 50/60HZ, 3 Phase Pipe: Stainless Steel Pipe, Steel Pipe
Applications: PWHT, Post Weld Heat Treatment, Stress Relieving, Industry: Oil & Gas Pipeline, Power Plant, Offshore Platform
High Light:

40kw Pipe Heat Treatment Equipment

,

460V Pipe Heat Treatment Equipment

,

PWHT Electromagnetic Induction Heater



Induction Pipe Heat Treatment Equipment




Brief introduction of Canroon induction pipe heat treatment equipment:

Induction post weld heat treatment machine is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.

For PWHT, the suitable pipe size with Diameter of 200-2500mm and Thickness of 25-160mm, heating temperature will reach 788℃ at most.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

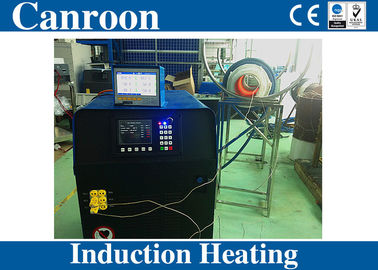

Overall pictures of Canroon induction pipe heat treatment equipment:

40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 0

Technical parameters of induction pipe heat treatment equipment:


ModelTemperatureInput PowerInputOutputDimension

Weight


CR2000-040788℃40KVA

3-phases
380V-460V
50-60Hz
50-61A

35KW
3-35KHz
Duty Cycle: 100%

H:762mm
W:544mm
L:730mm

115kg
CR2000-080788℃80KVA

3-phases
380V-460V
50-60Hz
100-121A

72KW
2.3-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg
CR2000-120788℃120KVA

3-phases
380V-460V
50-60Hz
150-181A

108KW
2.5-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg

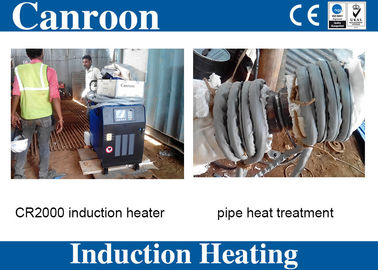

Application details of induction pipe heat treatment equipment:

Our induction heating equipment can be applied in offshore platform, power plant, oil and gas pipeline, etc

40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 1
40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 2

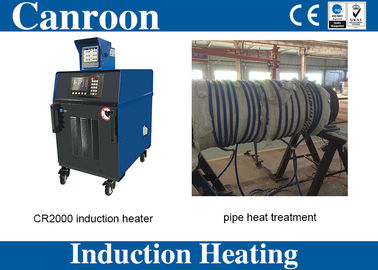

1, stainless steel pipe heat treatment:

40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 3
40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 4
40kw 460V Pipe Heat Treatment Equipment PWHT Electromagnetic Induction Heater 5

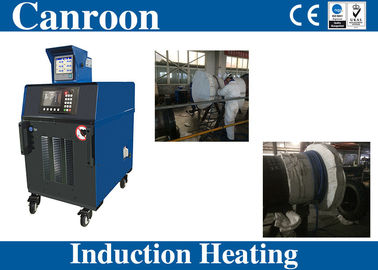

2, steel pipe heat treatment:

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes

PWHT curve:
40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment



Features of induction pipe heat treatment equipment:


  • Friendly Interface and Accurate Control

  • Various Control Mode

  • Fault Record

  • Easy Maintenenace

  • Self Diagnosis

  • High Efficiency

  • Uniform Heating

  • Replaceable Heating Inductor





Accessories of induction pipe heat treatment equipment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
