35kH 120kw Induction Heating Machine For Pipe Heat Treatment

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

35kH 120kw Induction Heating Machine For Pipe Heat Treatment

35kH 120kw Induction Heating Machine For Pipe Heat Treatment
35kH 120kw Induction Heating Machine For Pipe Heat Treatment 35kH 120kw Induction Heating Machine For Pipe Heat Treatment 35kH 120kw Induction Heating Machine For Pipe Heat Treatment 35kH 120kw Induction Heating Machine For Pipe Heat Treatment

Large Image :  35kH 120kw Induction Heating Machine For Pipe Heat Treatment

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE, ISO9001:2008, etc
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Cash
Supply Ability: 500 sets per month
Detailed Product Description
Power: 40kw, 80kw, 120kw Frequency: 3-35kHZ, Can Customize
Applications: PWHT, Post Weld Heat Treatment, Stress Relieving Industry: Offshore Platform, Oil And Gas Pipeline, Power Plant
Feature: Digital Control, Modular Design, Self-diagnosis, Fault Feedback, Etc Product Name: Induction Heating Machine For Pipe Heat Treatment
High Light:

120kw Induction Heating Machine

,

35kH Induction Heating Machine

,

ISO9001 Electromagnetic Induction Heater



Induction Heating Machine for Pipe Heat Treatment




Brief introduction of Canroon induction heating machine for pipe heat treatment:

Induction post weld heat treatment machine is designed and manufactured by Canroon fused for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.

For PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

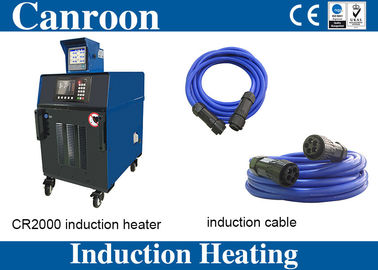

Overall pictures of Canroon induction heating machine for pipe heat treatment:

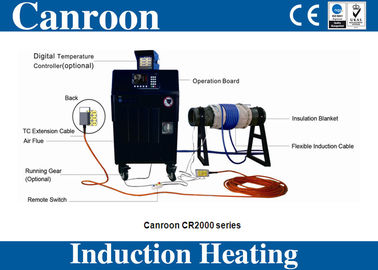

Our induction heating machine is manufactured by high quality materials, with temperature recorder and universal wheels, display panel, 6 thermocouple inputs, and stop in emergency, connecting with induction cable, can work very efficiently.

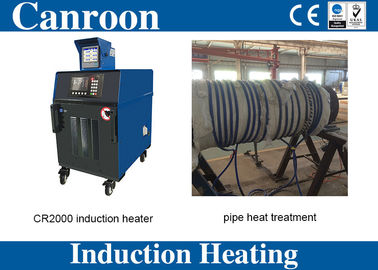

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
Technical parameters of induction heating machine for pipe heat treatment:


Model Temperature Input Power Input Output Dimension

Weight


CR2000-040 788℃ 40KVA

3-phases
380V-460V
50-60Hz
50-61A

35KW
3-35KHz
Duty Cycle: 100%

H:762mm
W:544mm
L:730mm

115kg
CR2000-080 788℃ 80KVA

3-phases
380V-460V
50-60Hz
100-121A

72KW
2.3-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg
CR2000-120 788℃ 120KVA

3-phases
380V-460V
50-60Hz
150-181A

108KW
2.5-35KHz
Duty Cycle: 100%

H:845mm
W:592mm
L:801mm

190kg





Application details of induction heating machine for pipe heat treatment:

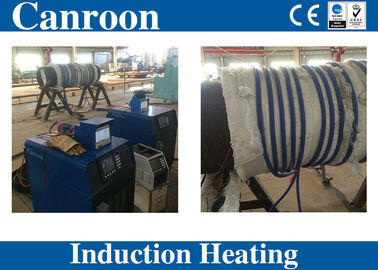

Our induction heating machine can heat the stainless steel pipe for post weld heat treatment, with the temperature recorder to show parameters when working, then print the PWHT curve for further research.

35kH 120kw Induction Heating Machine For Pipe Heat Treatment 1

PWHT curve:
40kw air cooling induction heating machine for pipeline PWHT post weld heat treatment



Features of induction heating machine for pipe heat treatment:


  • Friendly Interface and Accurate Control

  • Various Control Mode

  • Fault Record

  • Easy Maintenenace

  • Self Diagnosis

  • High Efficiency

  • Uniform Heating

  • Replaceable Heating Inductor



Accessories of induction heating machine for pipe heat treatment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes



Company information:

Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
