10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment

China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
China Shenzhen Canroon Electrical Appliances Co., Ltd. certification
I'm Online Chat Now

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment
10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment

Large Image :  10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment

Product Details:
Place of Origin: Shenzhen china
Brand Name: canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: FOB
Packaging Details: wooden case or as you require
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 Piece/Pieces per Week
Detailed Product Description
Machine Name: Handheld Induction Heating Equipment Power: 10kw
Voltage: 380V, Three Phase, 50/60HZ Output Frequency: 3-35kHZ
Duty Recycle: 100% Cooling System: Air Cooling
Applications: PWHT/post Weld Heat Treatment Suitable Industry: Offshore Platform, Power Plant, Oil And Gas Pipeline Construction, Etc
High Light:

stress relieving machine

,

post weld heat treatment equipment

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment




Brief introduction of 10KVA handheld induction heating equipment for pipe post weld heat treatment:

Handheld induction heating equipment is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair. It is small in size, easy to take, and convenient to operate.

Suitable pipes size: When applied in pipe post weld heat treatment/PWHT, 10kw handheld induction heating equipment is suitable for pipe size with diameter of 200-400mm and thickness of less than 30mm, heating temperature should be lower than 788℃, fast and uniform heating.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.




Application details of handheld induction heating equipment in pipes PWHT/post weld heat treatment:

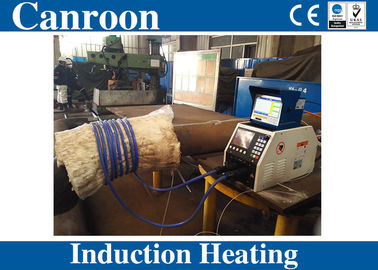

Our handheld induction heating equipment can be used in offshore platform, gas and oil pipeline, suitable for steel pipes with different diameters and thickness, see the following working site:

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 0

Following is picture of the working site of our handheld induction heating equipment for pipes PWHT/post wel heat treatment. Machine is small, easy to take and operate, With the temperature recorder to show parameters when working.

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 1
Following is picture of the temperature recorder and display panel, it is fast and uniform heating, can connect with thermocouples to feedback the temperature of corresponding position, after working, you can print the PWHT curve for further research.

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 2

Following is the printed PWHT curve, you can see the advantage: uniform heating.
10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 3

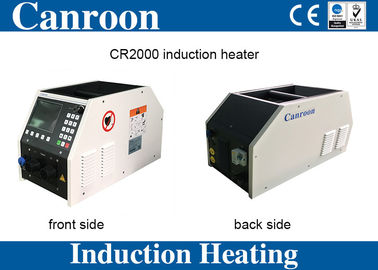

Details of Canroon handheld induction heating equipment:

Front:
10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 4
Back:

10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 5



Technical parameters of handheld induction heating equipment for PWHT:


ModelTemperatureInput PowerInputOutputDimensionWeight
CR2000-005B-12SF2788℃5kVA

1-phase
220-240V
50-60Hz
20.8-22.7A

4.2kW
5-60 KHz
duty cycle 100%

W:242.9mm
H:295.2mm
D: 504.4mm


16kg


CR2000-005B-14TF1


788℃5kVA

3-phase
380-460V
50-60Hz
6.3-7.6A

4.5kW
3-35 KHz
duty cycle 100%

W:263mm
H:302mm
D:535mm


18.6kg


CR2000-010B-14TF1


788℃

10kVA


3-phase
380-460V
50-60Hz
12.5-15A


9kW
3-35 KHz
duty cycle 100%

W:263mm
H:302mm
D:535mm


18.6kg

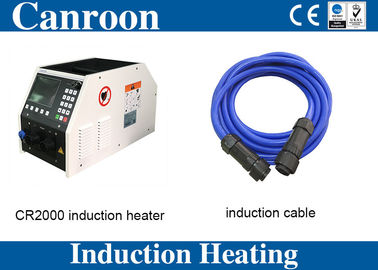

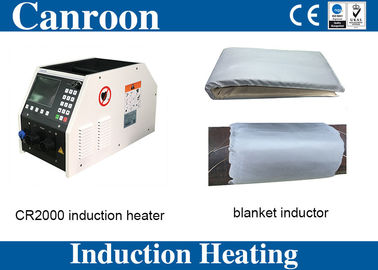

Accessories of handheld induction heating equipment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
10KVA Handheld Induction Heating Equipment For Pipe Post Weld Heat Treatment 6



Features of handheld induction heating equipment:

  • precise control

We have display board to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
