10-50kw Induction Heating Machine For Metal Brazing Annealing

10-50kw Induction Heating Machine For Metal Brazing Annealing
10-50kw Induction Heating Machine For Metal Brazing Annealing 10-50kw Induction Heating Machine For Metal Brazing Annealing 10-50kw Induction Heating Machine For Metal Brazing Annealing 10-50kw Induction Heating Machine For Metal Brazing Annealing

Large Image :  10-50kw Induction Heating Machine For Metal Brazing Annealing

Product Details:
Place of Origin: Guangdong, China
Brand Name: Canroon
Certification: ISO, CE
Model Number: CR2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB Shenzhen
Packaging Details: packing in wooden case.
Delivery Time: within7 days if available in stock
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Power: 10kw-50kw Output Frequency: 10-40kHZ
Voltage: 3phase, 380-460V, 50/60HZ Heating Method: Induction Heating
Cooling Method: Water Cooling Chiller: Built-in Chiller, No Need Extra Chiller
Transformer: Handheld Transformer/HHT Heat Treatment: Brazing, Annealing, Hardening, Curing, Etc
Suitable Metals: Nearly All Conductive Metals Like Copper, Steel, Brass, Iron, Aluminum Heating Efficiency: Fast And Uniform Heating Within Seconds
Inductor: Customized Inductors With Good Material Machine Name: Induction Brazing For Electric Motor / Transformer Copper Brazing
High Light:

Metal Annealing Induction Heating Machine

,

Metal Hardening Induction Heating Machine

,

50kw Induction Heat Treatment Equipment

Power:10-50kw

Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc

Frequency:10-40kHZ

Voltage: 3phase, 380-460V, 50/60HZ,

Application industries: aviation, metallurgy, tools and equipment, automotive, etc

Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc

Features: movable whith universal wheels,easy operation HHT, built-in chiller, etc

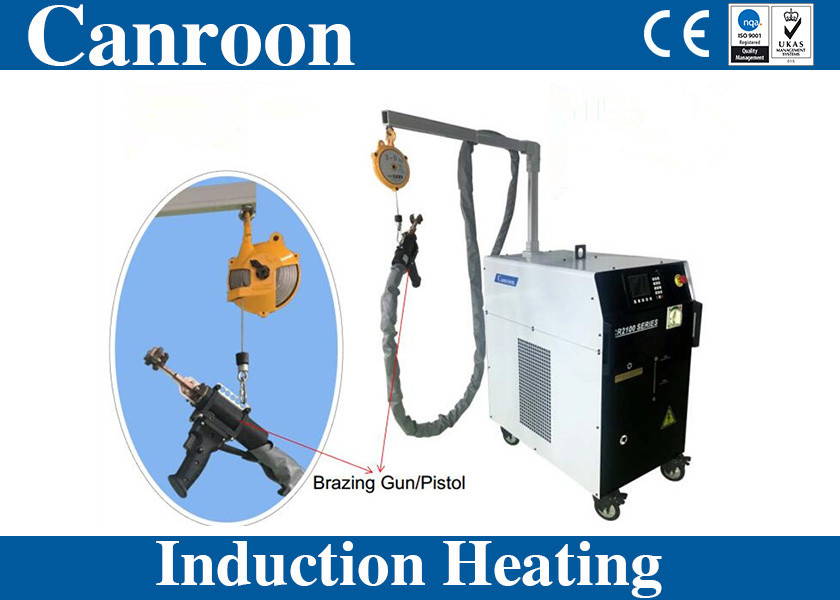

Induction heating machine shows as follows from different angles:



10-50kw Induction Heating Machine For Metal Brazing Annealing 0



Pictures to show the details: remote control, infrared pyrometer, TC, water inlet, display panel, water level indicator, HHT, support frame, etc



10-50kw Induction Heating Machine For Metal Brazing Annealing 1

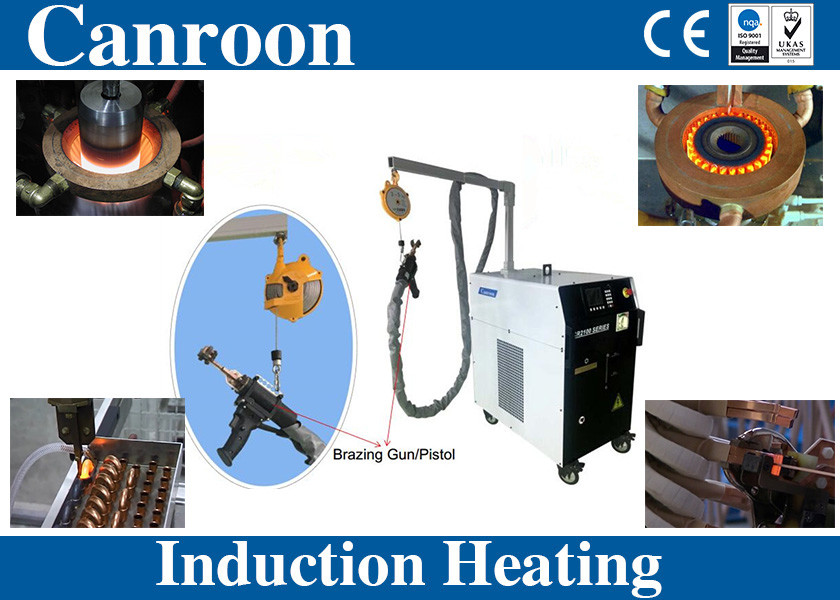

Applications of induction heating equipment:

Induction brazing of short circuit ring,

Induction brazing of copper wires on motor stator,

Induction brazing of rotor bar,

Induction brazing of rotor coil,

Induction brazing of heat exchanger,

etc

10-50kw Induction Heating Machine For Metal Brazing Annealing 2



Induction Brazing of brass with Ag-Cu alloy as welding solder to make slip ring in motor for wide applications.

10-50kw Induction Heating Machine For Metal Brazing Annealing 3

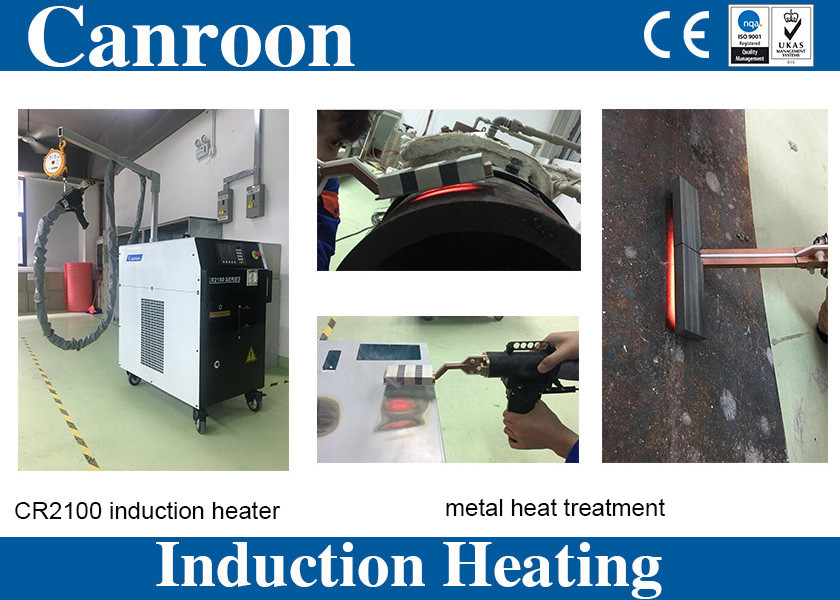

Induction annealing of steel plates, with good performance.



10-50kw Induction Heating Machine For Metal Brazing Annealing 4



Induction Hardening of metals:



10-50kw Induction Heating Machine For Metal Brazing Annealing 5

Induction Curing & paint removal:



10-50kw Induction Heating Machine For Metal Brazing Annealing 6

HHT(hand held transformer) is easy to operate, and can be integrated with Robot Arm for automotion production, two buttons to control the machine working:

10-50kw Induction Heating Machine For Metal Brazing Annealing 7



Inductors are important part of induction heater, it is precisely designed, manufactured

by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your workpiece:

10-50kw Induction Heating Machine For Metal Brazing Annealing 8






Model Rated input voltage & frequency Rated input power Rated input current Output frequency
CR2100-010E-14TW1

3-phase

400V(±20%)

50/60Hz

10KVA 15A 10~40KHZ
CR2100-015E-14TW1 15KVA 22A
CR2100-020E-14TW1 20KVA 30A
CR2100-025E-14TW1 25KVA 37A
CR2100-030E-14TW1 30KVA 45A
CR2100-035E-14TW1 35KVA 53A
CR2100-040E-14TW1 40KVA 60A
CR2100-050E-14TW1 50KVA 75A



· High Temp. & Fast Heating

Able to reach >1000 within seconds.

· Easy Operation

CR2100 can be easily start&stop manually, It can also be integrated into robot arm to serve automatic line.

· Accurate Control

The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.

· Fault Record

Fault codes will display and be recorded for reference.

· Easy Maintenance

Due to modular design, the maintenance will be easy and low-cost.

· Self-Diagnosis

Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.

· Customized Inductor

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.





Manufacturing site:

10-50kw Induction Heating Machine For Metal Brazing Annealing 9
