100-240 Vac Light Thermocouple Spot Welder For Fine Point Attachment Unit
  • 100-240 Vac Light Thermocouple Spot Welder For Fine Point Attachment Unit
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE; ISO9001:2008
Model Number CR100-000-AA1
Minimum Order Quantity 1SET
Packaging Details depend on our customers
Delivery Time A week after confirmed payment
Payment Terms T/T
Supply Ability 100 Piece/Pieces per Week
Product Details
Accumulator Capacity 3.2Ah Charge Voltage 100-240VAC, 50/60Hz
Automatic Spot Welding Time 3 Seconds Recover / Charging Time 10 Seconds
Thermocouple Size 0.5mm/0.7mm/1.0mm
Highlight

portable spot welding machine

,

thermocouple welding machine
Product Description

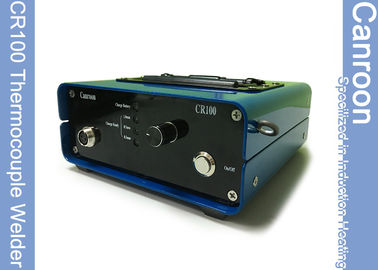

100-240 Vac Light Thermocouple Spot Welder For Fine Point Attachment Unit





CR100 portable thermocouple welder

is designed to fix thermocouple firmly on metal workpieces. It is an important optional accessories for our CR2000 induction heating machine applied for weld preheating and PWHT. Usually for pipes of oil&gas industry and power plant.



Specification:



<> Charge voltage: 100-240VAC, 50/60Hz

<> Accumulator Working Voltage: 12VDC 50/60Hz

<> Accumulator Capicity: 3.2AH

<> Automatic Spot Welding Time: 3 seconds

<> Recover / Charging time: 10 Seconds

<> Charging State Display: LED

<> Max. Penetration Depth: <0.2mm

<> Max. Heating Penetration Depth: <0.3mm

<> Thermocouple size: 0.5mm / 0.7mm / 1.0mm

<> machine size: 74*185*188mm, 2.7KG



Package:



Hand-held Outdoor Case / Safety Equipment Case

Gross Weight: 5.6KG



Features:

  • Fast Spot Welding
<> one-hand operation;
<> welding finished after 3 seconds of contact between thermocouple and workpiece;



  • Automatic Charging
<> Just 10 seconds for circuit recovery after one time spot welding;



  • Circuit Protection
<> Charging limitation, no need for watching when charging
<> Protection for over discharge



  • Off-line Working
<> Strong electric storage ability enable 2000 times of using after fully charged
