IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating

Basic Information
Place of Origin: China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600 sets per month
Detail Information
Power: 40kw, 80kw, 120kw, 160kw Machine Name: Induction Heating Generator
Module: IGBT Module Control: Digital Control
Design: Modular Design Brand: Canroon, Manufacturer
Application: Pipe Joint Anti-corrosion Coating Function: Induction Heating, Preheat
Inductor: Split Core Inductor, Clamps, Manual Type To Open And Close Industry: Oil And Gas Pipeline, Offshore Platform, Power Plant, Etc
High Light:

IGBT Induction Heating Generator CE

,

Pipe Fields Joint Induction Heating Generator

,

modular design Induction Heating Generator


Product Description



Induction Heating Generator for Pipe Joint Anti-corrosion Coating IGBT





CR2000 series induction heating generator can be used for joint anti-corrosion coating

in offshore platformpower plant,oil and gas pipeline construction,  etc,

IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating 0

IGBT induction heating generator:



Digital control for precise and stable working

Modular design for easy maintenance and repair

Self fault feedback for machine protection and longer service life

6 thermocouple inputs for timely temperature control

Display panel for easy operation

Universal wheels for high movability



Parameters of IGBT induction heating generator:



Model

Temperature Input Power Input Output Dimension Weight



CR2000-040



788℃



40KVA

3-phases
380V-460V
50-60Hz
50-61A
35KW
3-35KHz
Duty Cycle: 100%
H:762mm
W:544mm
L:730mm



115kg



CR2000-080



788℃



80KVA

3-phases
380V-460V
50-60Hz
100-121A
72KW
2.3-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm



190kg



CR2000-120



788℃



120KVA

3-phases
380V-460V
50-60Hz
150-181A
108KW
2.5-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm



190kg



CR2000-160



788℃



160KVA

3-phases
380V-460V
50-60Hz
192-288A
145KW
2.5-35KHz
Duty Cycle: 100%
H:1252mm
W:596mm
L:805mm



234kg





IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating 1

Product Features:



  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and

time-to-temperature is much faster than conventional processes due to the method of applying heat,

reducing cycle time.



  • Friendly Interface and Precise Control

The control board offers multiple heating pattern to choose such as preheat, PWHT, bakeout, custom,

so the heating process can be controlled precisely by determining parameters of each segment such as

temperature, time, temperature-time rate.



  • Abundant Accessories

We offer different sizes of output induction cable, output extension cable, insulation blanket, remote switch,

TC extension cable, digital temperature recorder, spot welding machine, etc., just for the convenience of

your application and engineering project. You can get the whole system.



  • Fault Recording and Protection

Fault code will display and be recorded for reference, and system will respond with protection action like

shutdown once fault occurs such as open-loop output and short out.

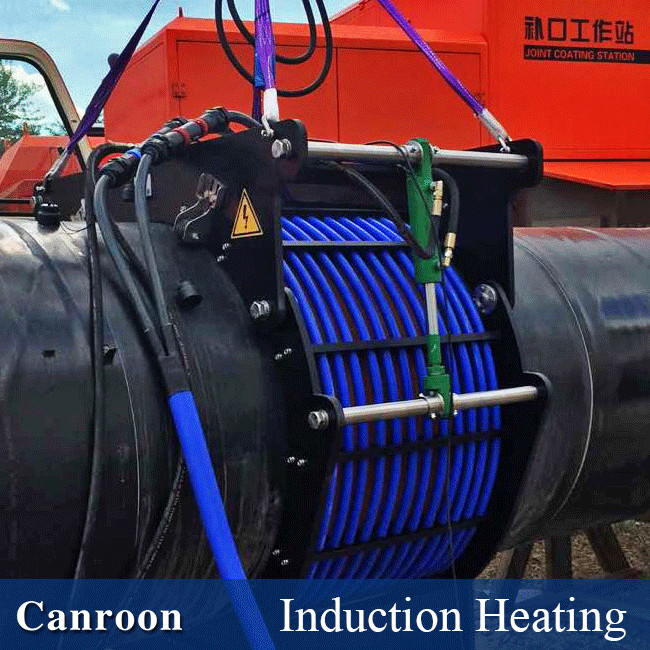

Working site of IGBT induction heating generator  applied for joint anti-corrosion coating

with  manual split core inductor:



Usually, induction heating generator will be far from the working site, so we can provide the extension cable for machine safe working.

Inductors can be operated by one or two persons according to the pipe size. Open and close easily. For pipe heating before coating,

just put the inductor around the pipe, then start heating, temperature and heating time can be precisely controlled by our machine.

With good performance and fast and uniform heating, our induction heating generator is widely applied in oil and gas pipeline,

power plant, offshore platform, etc



IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating 2

China supplier factory price induction heating machine for joint anti-corrosion coating in pipeline



Manual type split core inductor:

Manual type split core inductor is desinged and customized according to your pipe size, it can be easily opened and closed by

human force. Since the induction cables are well arranged and fixed, it can work with high efficiency, good performance, and

uniform heating. Besides, compared to heating with induction cables, you don't need to wind the cables around the pipes,

so save much energy and labor force. Induction cables will not touch the pipes, so suitable for joint anti-corrosion coating.



IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating 4



Accessories to match our IGBT induction heating generator  for the whole system:



We can supply the whole system  like thermocouple, thermocouple welding machine, digital temperature-recorder,

remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures

you to start work soon after received our delivery.


IGBT Induction Heating Generator For Pipe Fields Joint Anti Corrosion Coating 5



Competitive Advantages:



  • On-board Temperature Control

On-board temperature control provides for manual or temperature based programming in a simple-to-learn operator interface.



  • Perfect Mobility

Optional running gear is offered, which is easy to install or dismount.



  • Low consumable costs

No fuel costs and minimal insulation costs. Insulation blanket is reusable and may be used 50 time or more, reducing costs of disposal and replacement.



  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, and uniform temperature throughout the heating zone is realized.
