Automatic Charging Thermocouple Spot Welder For Fine Wire , Easy Operation Interface

Basic Information
Place of Origin: Shenzhen China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR100-000-AA1
Minimum Order Quantity: 1SET
Packaging Details: depend on our customers
Delivery Time: A week after confirmed payment
Payment Terms: T/T
Supply Ability: 100 Pieces per Week
Detail Information
Type: Portable Charge Voltage: 100-240VAC, 50/60Hz
Automatic Spot Welding Time: 3 Seconds Recover / Charging Time: 10 Seconds
Thermocouple Size: 0.5mm/0.7mm/1.0mm
High Light:

thermocouple wire welder

,

thermocouple welding machine


Product Description



Automatic Charging Thermocouple Spot Welder For Fine Wire , Easy Operation Interface

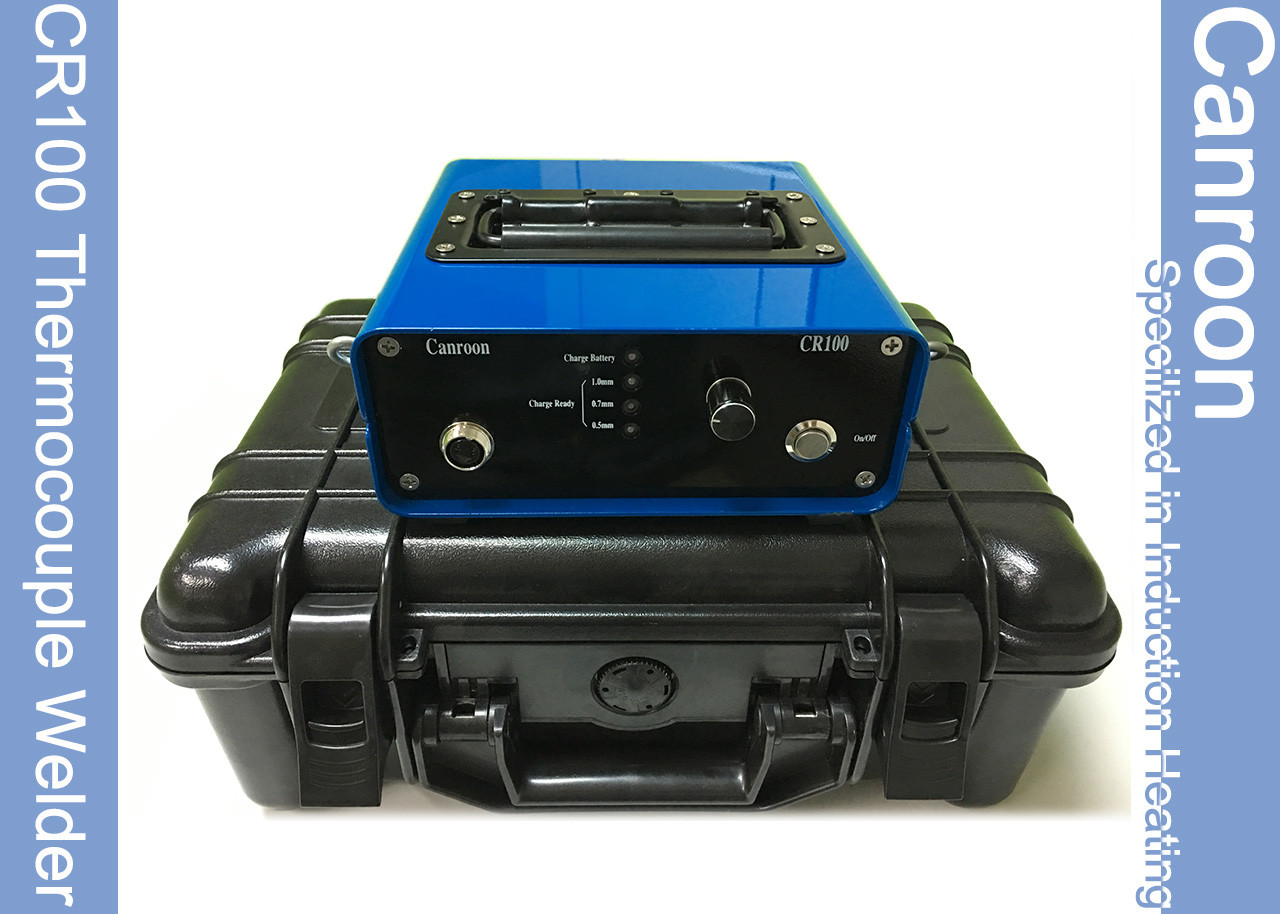

CR100 portable thermocouple welder ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.



It is a very welcomed accessories of CR2000 induction heating system. In welding preheat & PWHT where requires temperature closed-loop control and accurate temperature signal, CR100 ensures to make these happen easily and quicly.



Feastures:



  • small size, portable type;
  • light and handy
  • fast spot welding;
  • automatic charging;
  • easy operation interface;



Specification:



<> Charge voltage:                            100-240VAC, 50/60Hz

<> Accumulator Working Voltage:      12VDC 50/60Hz

<> Accumulator Capicity:                    3.2AH

<> Automatic Spot Welding Time:       3 seconds

<> Recover / Charging time:              10 Seconds

<> Charging State Display:                 LED

<> Max. Penetration Depth:                <0.2mm

<> Max. Heating Penetration Depth:   <0.3mm





 Size & Weight:



<> 74*185*188mm <> 2.7KG





Features:



  • Fast Spot Welding
<> one-hand operation;
<> welding finished after 3 seconds of contact between thermocouple and workpiece;



  • Automatic Charging
<> Just 10 seconds for circuit recovery after one time spot welding;



  • Circuit Protection
<> Charging limitation, no need for watching when charging
<> Protection for over discharge



  • Off-line Working
<> Strong electric storage ability enable 2000 times of using after fully charged
