Portable IGBT Induction Brazing Equipment Built In Water Cooling System

Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Power:10-50kw

Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc

Frequency:10-40kHZ

Voltage: 3phase, 380-460V, 50/60HZ,

Certificates: ISO, CE, etc

Application industries: aviation, metallurgy, tools and equipment, automotive, etc

Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc

Features: built-in chiller, HHT, universal wheels, digital control, self-fault diagnosis, modular design, etc

If you deals with metals processing, if you need to heat, you can choose our machine, fast, new advanced,
energy-saving, environmental protection, most importantly, it can bring you much profit!
Induction brazing of short circuit ring,Induction brazing of copper wires on motor stator,Induction brazing
of rotor bar,Induction brazing of rotor coil,Induction brazing of heat exchanger so our machine can be used
in big motor manufacturing and mantenance industry, air conditioner industry, etc

Parameters of Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair has many advantages over flame or other brazing methods:

1.Ultra-light and ultra-small handheld transformator,the minimum weight is only 3Kg.

2.Specific temperature or power curves can be set using a process program

3.Energy concentration,rapid heating,current and power response.

4.Fast running mode,heating time can be less than 1s.

5.Rich interface forms to facilitate communication with PLC and computer.

6.Using a new generation of control core, can output power to any metal to achieve rapid heating, a wide

range of applications

Applications of Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Applications:Brazing of motor parts like copper wire, rotor coil, short circuit ring, heat exchanger, etc, hardening,
quenching, annealing, curing, straightening, paint removal, etc
Suitable material: nearly all electrical conductive metals like copper iron steel brass aluminum etc


Our portable handheld induction Brazing machines are used for various brazing process such as tube brazing,

electrical rotor brazing, conical drill bit brazing, carbide-edged blade brazing, steel blade brazing and fittings brazing.

Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it,

when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.

Brief introduction of Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Because brazed joints have a very clean, well-finished appearance, it is often the preferred bonding process for

manufacturing plumbing fixtures, tools, heavy construction equipment and high-quality consumer products.

Brazing is relatively fast and economical, requires relatively low temperatures and is highly adaptable to automation

and lean manufacturing initiatives.

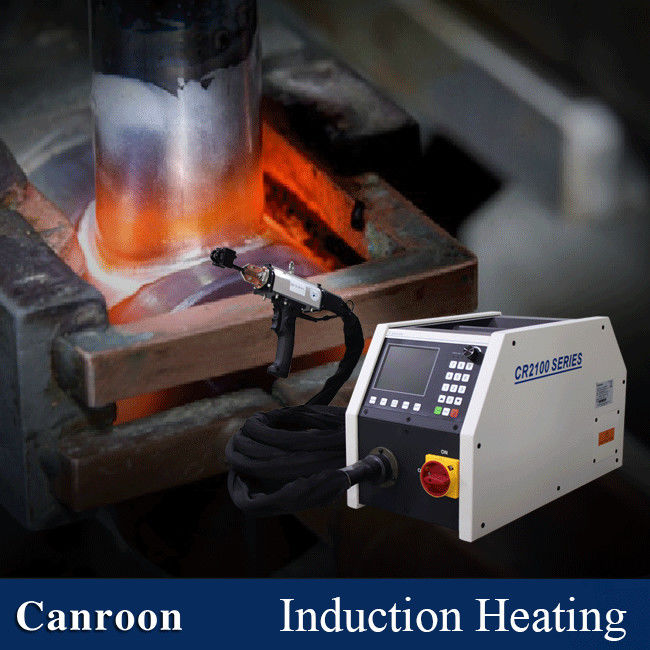

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular
both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor,
soft induction cable, water cooling system.

Inductors are important part of induction heater, so it is precisely designed, manufactured by good quality material,

and tested many times before outgoing, it is detachable, and can be customized accoridng to your needs:

Applications Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair
Brazing, Annealing, Straightening, Hardening, Bolt Untighten, Shrink Fitting, Paint/Coating Removal, etc.
see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar,
short circuit ring, etc.


Following is induction brazing of brass bar with Cu-Ag alloy as the welding solder to make slip ring for

wide applications.

Production line Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Our induction heater is small and portable, easy to take to even hard-to-reach working site, we use soft cable,

flexible, HHT and detachable inductor will make it more efficient to use and work.

Packaging Details Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

Electic induction welding equipment is packed with plastic film, and fixed with rubber belt
Inside the case, covered with foamsOutside covered with customized wooden case.

Our Services Portable IGBT Induction Brazing Equipment with Built-in Water Cooling System Applied in Motor Repair

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

1)super and solid quality

2)Fast and punctual delivery

3)Standard export package or as customers’ need.

3.After-sale service

1)Assistance to your project

2)Repairing and maintenance if any problem occur in the warranty.

3)Installation and clerks training

4)Spare and wearing parts for free or with big discount

5)Any feedback of machines can be told to us, and we will try our best to support you.

4.Other cooperation service

1)Technology knowledge share

2)Factory building advising

3)Business expansion advising
