Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction
Place of Origin Guangdong, China
Brand Name Canroon
Certification CE
Model Number CR2000
Minimum Order Quantity 1
Price Negotiation
Packaging Details carton box
Delivery Time 3-5 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 5000 Piece/Pieces per Month
Product Details
Input Current 20.8-22.7A Input Frequency 50-60Hz
Inductance Range 1-160uH Heating Temperature Can Be High As 788℃
Input Voltage 1-phase 220-240V Temperature Control Digital Display
Material Carbon Steel/Stainless Steel/Copper/Aluminum Output Frequency 5-60KHz
High Light

Pipe Induction Preheating Welding

,

Induction Preheating Welding 60KHz

Product Description

Vfd inverter Variable Frequency Inverter 220V variable frequency driver 2.2kw inverter

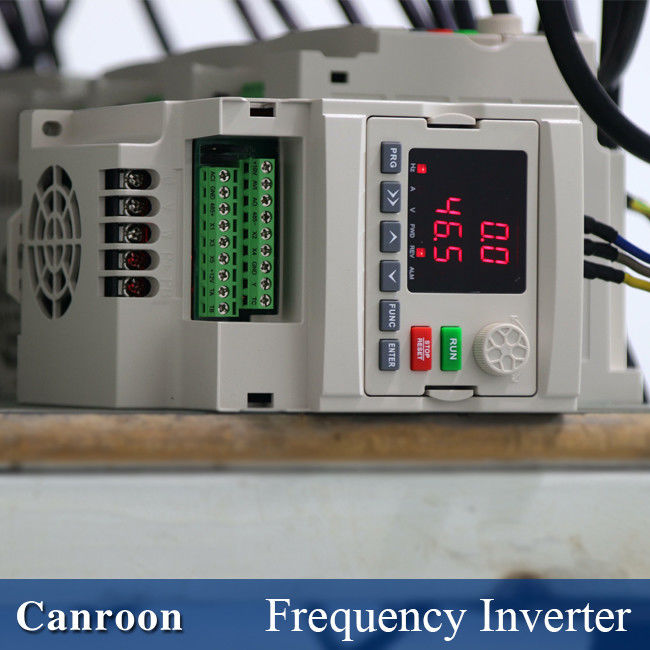

What's CV800 Frequency Inverter? VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver

Inverter power range: 0.4kW to 11kW
Input voltage: 1 phase 220V, 230V, 240V fluctuate rate 15% plus-minus
Output voltage: 3 phase 0 to rated input voltage



Canroon's CV800 Series Multi-Function Vector Control Inverter is powerful functions and excellent in performance,

suitable for medium and small power applications, such as constant pressure water supply, woodworking

machinery,textile equipment, food filling, logistics equipment, automated production lines, ceramic equipment,

electronic equipment, packaging machinery, etc.



Inverter Applications of VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver
Drawing machine, textile, packaging machinery, tobacco, paper making, stone machinery, mining machinery, printing machinery,

food, chemical, transmission, wire and cable, metallurgy, machine tools, wood machinery, ceramic industry, building materials,

and much more industries.



Product Description
Technical Index and Specification VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver
Input Rated Voltage, Frequency 3-phase (-4T) 380V;50/60HZ
Allowed Voltage Range 3-phase (-4T)320V~460V
Output Voltage 4T;0~380V
Frequency 0~600HZ
Overload Capacity 10% for long-term, 150% for 1 min, 180% for 5s
Control Mode V/F control, Simple vector control
Control Character

Frequency Setting

Resolution

Analog Input 0.1% of maximum output frequency
Digital Setting 0.1HZ
Frequency Precision Analog Input Within 0.2% of maximum output frequency
Digital Setting Within 0.01% of set output frequency

V/F Control



V/F Curve

(voltage frequency

character)

Reference frequency setting 5~600 Hz, multipoint V/F

curve setting, or fixed curve of constant torque, low decreasing

torque 1, low decreasing torque 2, square torque

Torque

Compensation

Manual setting: 0.0~30% of rated output

Automatic

Current-limiting

and

Voltage-limiting

Automatic lifting: automatically determine the lifting torque based

on the output current combined with the motor parameters

Control Character

Senseless Vector

Control



Voltage Frequency

Character

Adjust pressure/frequency ratio according to motor parameter and

unique algorithm

Torque Character Starting torque
100% rated torque at 5.0 Hz (V/F Control)
150% rated torque at 1.5 Hz (simple vector control)

Current and

Voltage Restrain

Current closed-loop control, free from current impact, perfect

restrain function of overcurrent and overvoltage

Undervoltage

Restrain during

Running

Specially for users with a low or unsteady voltage power grid: even lower than the

allowable voltage range, the system can maintain the longest possible operating time

based on its unique algorithm and residual energy allocation strategy

Typical function

Multi-velocity and

Traverse Operation

7-segment programmable multi-velocity control, multiple operating modes are

optional.

PID Control

Built-in PID controller (able to preset frequency). Standard configuration RS485

communication function, multiple communication protocol for choice, synchronizing

control function.

RS485

Communication

Frequency Setting



Analog Input



Direct voltage 0~10V, direct current 0~20mA

(optional up limit and lower limit)

Digital Output



Operation panel setting, RS485 port setting, UP/DW terminal

control, or combined with analog input

Output Signal

Analog Input



1 channel OC output and one channel relay output

(TA, TB,TC), up to 14 choices

Digital Output

1 channel analog signal output, output ranging within 0~20mA or

0~10V with flexibly setting, achievable output of physical

quantities like set frequency, output frequency

Automatic

Steady-voltage

Operation

Dynamic steady state, static steady state, and unsteady voltage for choices to obtain

the steadiest operation

Acceleration and

Deceleration Time

Setting

0.1S~999.9min continuous setting

Brake



Dynamic

Braking

Dynamic braking initial voltage, backlash voltage and dynamic braking continuous

adjustable

DC

Braking

Halt DC braking initial frequency:0.00~[F0.05]upper limit frequency
Braking time:0.0~30.0s;Braking current:0.0%~50.0%of rated current
Low Noise Running Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise
Counter A built-in counter, facilitate system integration
Operation Function

Upper limit and lower limit frequency setting, frequency hopping operation, reversal

running restraint, slip frequency compensation, RS485 communication, frequency

control of progressive increase and decrease, failure recovery automatically, etc.

Display

Operatio

n Panel

Display



Running

State

Output frequency, output current, output voltage, motor speed, set frequency, module

temperature, PID setting, feedback, analog input and output

Alarm



The latest 1 faults record; running parameters record when the latest fault tripping

happens including output frequency, set frequency, output current, output voltage, DC

voltage and module temperature etc 6 running parameters record.

Protective Function

Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat,

short circuit, default phase of input and output, motor parameter adjustment

abnormality, internal memory fault, etc.

Environment



Ambient

Temperature



-10℃~+40℃ (please run the VFD in derated capacity when ambient temperature

is 40°C~50°C)

Ambient Humidity 5%~95%RH,without condensing drops
Surroundings Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust)
Altitude Running in derated capacity above 1000m, derate 10% for every 1000m rise.
Structure Protection Level IP20
Cooling Method Air cooling with fan control

Installation Method



Wall-hanging type,Cabinet type



Product Features VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver

Compact and powerful; High starting torque, adapt to various loads ; Supports programmable operation control,

making complex applications easier ; Stronger overload capacity, shorter acceleration time ; Built-in PID function

for full-closed-loop control ; Comprehensive protection function, more reliable operation

Product model of VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver



Voltage Classes Model No. Rated Power (KW) Rated Output Current (A)
   380V 3-phase CV800-00AG-14TF 0.4 1.2
CV800-00BG-14TF 0.75 2.5
CV800-001G-14TF 1.5 3.7
CV800-002G-14TF 2.2 5
CV800-003G-14TF 3 6.8
CV800-004G-14TF 3.7 9
CV800-005G-14TF 5.5 13
CV800-007G-14TF 7.5 17
CV800-011G-14TF 11 25





Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction

Applications

 Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction

Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction

Factory workshop

Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction

Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction

About Canroon VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver

Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than

12 years, whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy,

chemical engineering, petroleum pipeline constrution, newmaterials, new energy and other fields.

Canroon has a professional R&D team, committed to convert its wisdom into leading products and services

to meet the needs of different customers, continuing to create values for customers



Exhibition VFD Ac inverters1hp 2hp 3hp Variable Frequency Inverter 220V 380V 440V variable frequency driver

 Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction



Packaging:

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements

Certifications:

Pipe Induction Preheating Welding 60KHz For Onshore Offshore Pipeline Construction



FAQ:

1. Are you a trading company or manufacturer?
We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.



2. What's the delivery time for sample and bulk order?

Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.



3. What's your quality guarantee period?

12 months warranty



4. I am not so familiar with your machine now. I am not sure i can use it well if i buy it from you?
Dont worry about this any more. With the machine,we will send you a brochure with detail information with

our machine operation. If you need, Video is also available.



Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.

3.After-sale service

Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and

clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to

us, and we will try our best to support you.



Shipping ways

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Customers specifying freight forwarders for negotiable shipping nethods.

4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
