80KVA High Frequency Induction Heating Equipment For Wellhead Preheating
Place of Origin ShenZhen, China
Brand Name Canroon
Certification CE ISO9001:2008
Model Number CR2000
Minimum Order Quantity 1 set
Price FOB
Packaging Details wooden case
Delivery Time within 5 days if available in stock
Payment Terms L/C, T/T, Western Union
Supply Ability 500 sets per month
Product Details
Power 40KVA, 80KVA Application Wellhead Preheating , PWHT
Key Selling Points Easy To Operate Control Digital Control
Function Pipe Heat Treatment Cooling System Air Cooling
Tech IGBT Induction Heating Input Voltage 380-460V, 50/60HZ, 3 Phase
Suitable Pipe Steel Pipe, Stainless Steel Pipe Application Fields Pipeline Construction, Offshore Platform Industry
High Light

80KVA High Frequency Induction Heating Equipment

,

PWHT High Frequency Induction Heating Equipment

,

PWHT High Frequency Induction Heating Machine

Product Description

Big Power High Frequency Induction Heating Equipment for Wellhead preheating with Air Cooling



The welding of steel after preheating can reduce the stress,improve the welding strength,

and prevent cracking.Post-heating is used for dehydrogenation,annealing,tempering,

normalizing and other processes.


Induction heating is used for welding preheating and post-heating.

It has the characteristics :

1. A good controllability

2. Can realize complex process program

3. Non-contact heating

4. Wide adaptability

5. high efficiency

6. Eneray density

7. Can realize on-line heating



Brief introduction of induction heating equipment for Wellhead preheating :



Induction heaitng equipment is designed and manufactured by Canroon used for  Wellhead

preheating pipes post weld heat treatment /  PWHT , widely applied and welcomed by oil&gas piping,

and power plant construction & repair.



We have movable type  with40kw, 80kw, 120kw, 160kw .

For portable type, we have 5kw, 10kw. Such as 40kw induction heating equipment applied in PWHT,

the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature

will reach 788℃ at most. It can heat both carbon steel pipes and stainless steel pipes.



Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.



Overall pictures of induction heating equipment for Wellhead preheating :



Canroon induction heating equipment is designed and manufactured with high quality materials, it has

beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display

panel to show working details, six thermocouple connections to record the temperatures, and remote

control for working site accordingly.

80KVA High Frequency Induction Heating Equipment For Wellhead Preheating



Technical parameters of induction heating equipment for post weld heat treatment:



Model Temperature Input Output Dimension

Weight



CR2000-040 788℃

Power :40KVA

Voltage :3-phase 380-460V

Frequency :50-60Hz

Current :50-61A

Power: 36KW

(duty cycle 100%)

Frequency: 3-35KHz





W:597mm

H:830mm

D:801mm









        142kg

CR2000-080 788℃

Power :80KVA

Voltage :3-phase 380-460V

Frequency :50-60Hz

Current :96-144A

Power:72KW

(duty cycle100%)

Frequency:2.5-35KHz

CR2000-120 788℃

Power :120KVA

Voltage :3-phase 380-460V

Frequency :50-60Hz

Current :144-216A

Power:108KW

(duty cycle100%)

Frequency:2.5-35KHz





W:596mm

H:1252mm

D:805mm







         234kg

CR2000-160 788℃

Power :160KVA

Voltage :3-phase 380-460V

Frequency :50-60Hz

Current :192-288A

Power:145KW

(duty cycle100%)

Frequency:2.5-35KHz

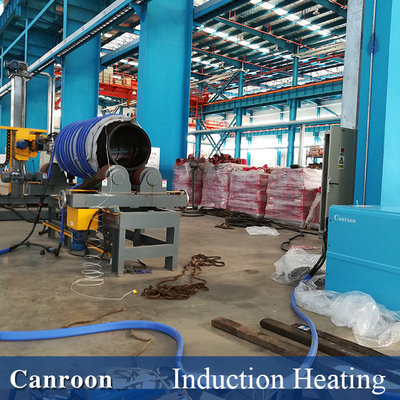

Application details of induction heating equipment for Wellhead preheating :



Induction heating machine with temperature recorder for Wellhead preheating pipe PWHT/post weld heat

treatment works very well, from the temperature feedback from thermocouple, we can see it is fast and

uniform heating, insulation blanket can keep heat, and the induction cable windings can be set according

to your pipe,heating temperature, etc. following is picture of the detailed working site.



80KVA High Frequency Induction Heating Equipment For Wellhead Preheating

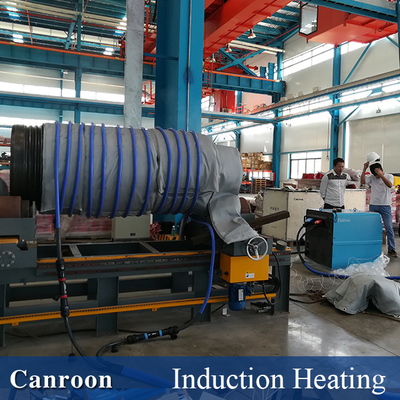

Also, our induction heating equipment can work very well for stainless steel pipe PWHT, see the following

picture to know more about the processing:



High Frequency Big Power Induction Heating Equipment for Wellhead preheating with Air Cooling

Features of induction heating equipment for post weld heat treatment:

  • Friendly Interface and Accurate Control
  • Various Control Mode
  • Fault Record
  • Easy Maintenenace
  • Self Diagnosis
  • High Efficiency
  • Uniform Heating
  • Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice

including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor,

all of which are easily dismountable and reconnected to the power source. So the power source can

be used for heating workpiece of different size and shape.

80KVA High Frequency Induction Heating Equipment For Wellhead Preheating

Accessories of good quality competitive price induction heating PWHT equipment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder,

remote switchgear,output extension cable, insulation blanket, etc. Complete solution saves your time and

ensures you to start work soon after receiving our delivery.



80KVA High Frequency Induction Heating Equipment For Wellhead Preheating
