Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction
Place of Origin Guangdong, China
Brand Name Canroon
Certification CE ISO9001
Model Number CR2000
Minimum Order Quantity 1
Price Negotiable price
Packaging Details Wooden box
Delivery Time 7-15 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 500 Carton/Cartons per Month
Product Details
Input Power 5KVA Inductance Range 1-160uH
Input Frequency 50-60Hz Temperature Control Digital Display
Heating Temperature Can Be High As 788℃ Input Current 20.8-22.7A
Thermocouple 6 PCS Certificate CE, EAC, ISO9001
Input Voltage 1-phase 220-240V Port Shenzhen
High Light

Digital Display Induction Preheating Welding

,

Induction Preheating Welding For Gas Pipeline

,

5KVA Induction Preheating Welding

Product Description



Low cost 40hp 50hp 30kw 37kw 3 phase hybrid ac heatpump,

screw air compressor frequency inverter drive

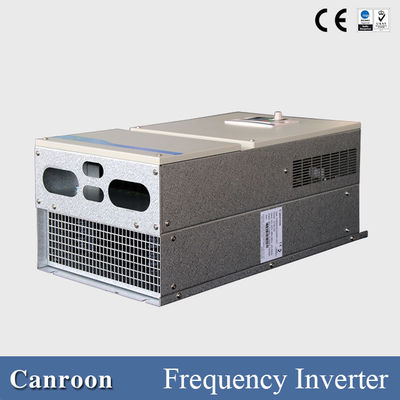

CV900G series frequency inverter included advanced technology of flux vector control.High torque

output of full frequency, quick response, perfect load adaptability,high control precision of speed

and good reliability, all of which ensure it to meet high requirement of various field application.

Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction



Product Description





Input

Rated Voltage, Frequency

3-phase(4T#sereis)380V;50/60HZ

1-phase(2S#series)220V;50/60HZ

Allowed Voltage Range

3-phase(4T#series)320V~460V

1-phase(2S#series)160V~260V

Output

Voltage

4T#series; 0~480V

2S#series; 0~260V

Frequency

Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ

Overload Capacity

G type: 110% for long-term, 150% for 1 min, 180% for 5s

P type: 105% for long-term, 120% for 1 min, 150% for 1s

Control Mode

V/F control, advanced V/F control, V/F separation control, electric current vector control



Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction



  frequency Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ
Overload Capacity G type: 110% for long-term, 150% for 1 min, 180% for 5s
P type: 105% for long-term, 120% for 1 min, 150% for 1s
Control Mode V/F control, advanced V/F control, V/F separation control, electric current vector
Control Characters Frequency Setting Resolution Analog Input 0.1% of maximum output frequency
Digital Setting 0.01 Hz
Frequency Precision Analog Input Within 0.2% of maximum output frequency
Digital Setting Within 0.01% of set output frequency
V/F Control V/F Curve(voltage frequencycharacter) Reference frequency setting 5~600 Hz, multipoint V/F curve setting,
or fixed curve of constant torque, low decreasing torque 1, low decreasing torque 2, square torque
Torque Compensation Manual setting: 0.0~30% of rated output Automatic compensation: according to output current and motor parameter
Automatic Current-limiting and Voltage-limiting control it within bounds based on unique algorithm, minimize During acceleration, deceleration or steady running, detect automatically the current and voltage of motor stator, and fault-trip chance
Senseless Vector Control Voltage Frequency Character Adjust pressure/frequency ratio according to motor parameter and unique algorithm
Torque Character Starting torque:
3.0 Hz 150% rated torque (VF control)
0.5 Hz 180% rated torque (SVC, FVC)
0.05 Hz 180% rated torque (VC)
Operating speed precision in steady state: ≤±0.5% rated
synchronous speed
Torque response: ≤50ms VC, SVC, FVC ≤ 20ms
Motor Parameter Self-measurement Being able to detect parameter automatically under static state and dynamic state of motor, thus guarantee an optimum control.
Current and Voltage Restrain Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage
Product model



Voltage Class

Rated Power(KW)

Rated Output Current(A)

Adapted Motor(KW)

220V 1-phase

0.4

2.4

0.4

0.75

4.5

0.75

1.5

7

1.5

2.2

10

2.2

380V 3-phase

0.75

2.5

0.75

1.5

3.7

1.5

2.2

5.0

2.2

3.7

9

3.7

5.5

13

5.5

7.5

17

7.5

11

25

11

15

32

15

18.5

37

18.5

22

45

22

30

60

30

37

75

37

45

90

45

55

110

55

75

150

75

...

...

...

500

930

500





Applications



Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

Factory workshop

Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

About Canroon

Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than 10 years,

whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy, chemical engineering,

petroleum pipeline constrution, new materials, new energy and other fields.

Canroon has a professional R&D team, committed to convert its wisdom into leading products and services to meet the

needs of different customers, continuing to create values for customers



Oversea Marketing

Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

Certifications

 Digital Display Induction Preheating Welding Metal For Gas Pipeline Construction

FAQ

1. Are you a trading company or manufacturer?

     We are a manufacturer located in Shenzhen specilized in frequency inverter for many years



2. What's the delivery time for sample and bulk order?

     Normally we have stock of the mini and medium voltage items, 1-3 days for sample    order, 15-40days for 20 GP and 40HQ quantity.



3. Do you accept OEM business?

     Yes, our CV900 series include bespoke manufacturing, as well as a range of added value business solutions.



4.  What's your quality guarantee period?

     12 month for the frequency inverter



5.Which is your main market?

We export more than 100 coutries with very competitive cost and good quality.



6. Can I get a lower price if I order large quantities?

     Cheaper price with more bigger quantity



 Payment Terms

 1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery);

Trade assurance from Alibaba with 20000 dollars

 2. MOQ: 1 set;

 3. Warranty: 12 months



Shipping ways

 1. Fedex/DHL/UPS/TNT for samples, door to door;

 2. By air or by sea for batch goods for FCL, airport/port receving;

 3. Customers specifying freight forwarders for negotiable shipping nethods.

 4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
