|Place of Origin:||Shenzhen china|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||wooden case|
|Delivery Time:||within 5 days if available in stock|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||500 Sets/Month|
|Product Name:||Induction Heating Machine||Power:||40kw, 80kw, 120kw|
|Applications:||Pipe Weld Heat Treatment/PWHT||Resonance:||Series Resonance|
|Control Model:||Digital Control||Packing:||Wooden Case|
electromagnetic induction heater,
stress relieving machine
Induction Heating Machine for Flange Post Weld Heat Treatment
Brief introduction of Canroon induction heating machine for flange post weld heat treatment with temperature recorder:
Brand: Canroon(China manufacturer)
Certificates: ISO, CE, etc
Power: 120kw (also supply 40kw, 80kw)
Heating temperature: can be high as 788℃
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-2500mm diameter, 25-120mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment for carbon steel pipes and stainless steel pipes
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
Also, our induction heating machine can work well for welding preheating and joint anti-corrosion coating.

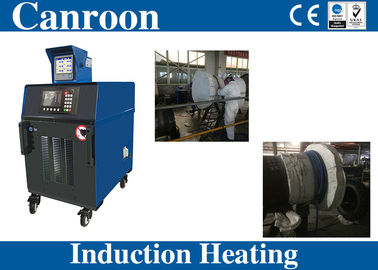

Overall pictures of Canroon induction heating machine for flange post weld heat treatment with temperature recorder:

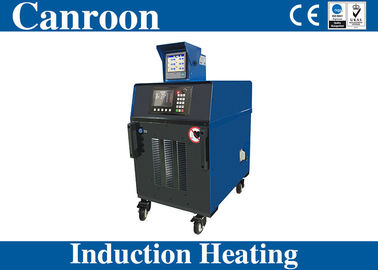

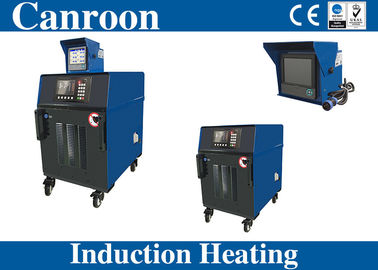

Canroon induction heating machine is designed and manufactured with high quality materials, it has beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display panel to show working details, six thermocouple connections to record the temperatures, and remote control for working site accordingly. For PWHT, we suggest you use the induction heating machine with temperature recorder.
Technical parameters of induction heating machine for flange post weld heat treatment with temperature recorder:
Duty Cycle: 100%
Duty Cycle: 100%
Duty Cycle: 100%
Application details of induction heating machine for flange post weld heat treatment with temperature recorder:

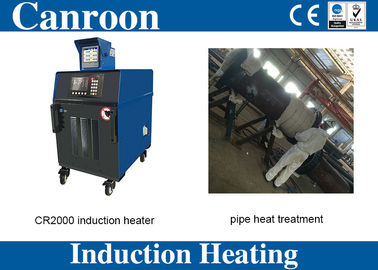

Our induction heating machine can heat the pipes with fast speed and high quality. Steps are as following: prepare and clean the flange, welding thermocouple wire on the pipe, wrap the pipe with induction blanket to keep heat, wind the induction cable around, when everything is ready, start working, temperature recorder and display panel can show the working conditions accordingly.
Features of induction heating machine for flange post weld heat treatment with temperature recorder:
The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
Due to modular design, the maintance will be easy and low-cost.
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.
Accessories of induction heating machine for flange post weld heat treatment with temperature recorder:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
