Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass

China Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass supplier
Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass supplier Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass supplier Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass supplier

Large Image :  Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR2100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 7 days if available in stock
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Power: 10-50kw, (can Supply 10-300kw) Frequency: Intermediate Frequency, High Frequency
Brand: Canroon, China Leading Manufacturer Packing: Wooden Case
Shipping: Air, Express, Sea, As You Require Induction Heating: IGBT
Circuit: Digital Circuit Control Design: Modular Design
Application: Induction Brazing, Hardening, Metal Heat Treatment, Etc Suitable Metals: Copper, Brass, Steel, Aluminum, Iron, Etc



Water Cooling High Frequency Portable Induction Brazing Equipment






Brief introduction of Canroon water cooling high frequency portable induction brazing equipment:





CR2100 series induction brazing equipment, designed with digital circuit and modular design, equipped with LCD display, bring you advanced system with reliability, and high efficiency.

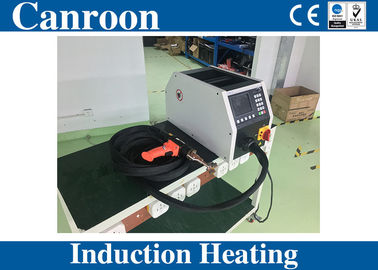

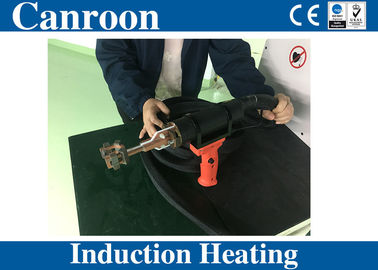

for portable type, machine is small in size, light in weight, water cooling induction cable, HHT/handheld coaxial transformer for easy handle and operation, for the inductor, we can customize it according to your workpiece.



Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass




Application details:



Materials:

All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.

Applications:

Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.

Workpieces:

<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.

<> Heat exchanger: copper tube;

<> Automobile die;

<> Crank shaft;

<> Oil&gas pipe.

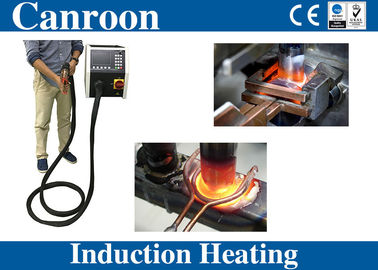

see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, copper plate, brass/slip ring, etc

Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass



Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass

Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass




Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass


Technical Parameters of portable high frequency induction hardening machine:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B-14TW1 3-phase
/400V
(±20%)
50/60Hz
10KVA 15A 10~40KHZ

4~6 bar

≥12L/min

L: 581mm

W: 283mm

H: 334mm

CR2100-015B-14TW1 15KVA 22A
CR2100-020B-14TW1 20KVA 30A
CR2100-025B-14TW1 25KVA 37A

4~6 bar

≥19L/min

CR2100-030B-14TW1 30KVA 45A
CR2100-035B-14TW1 35KVA 53A
CR2100-040B-14TW1 40KVA 60A
CR2100-050B-14TW1 50KVA

75A









Product features:



1. High efficient: thermoelectric conversion efficieny: >85%;



2. Enviromental friendly: zero pollution, zero discharge;



3. Intelligent: PID temperature closed-loop control, precise temperature control;



4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.



5. Operation interface: humanized MMI, chinese/ English available;



6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;



7. Automation integration: Quickly and easily integrated into automated production lines;



8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
