Re - Chargeable Thermocouple Spot Welder , Spot Welding Equipment 50 / 60hz
Place of Origin Shenzhen China
Brand Name Canroon
Certification CE; ISO9001:2008
Model Number CR100-000-AA1
Minimum Order Quantity 1SET
Packaging Details depend on our customers
Delivery Time A week after confirmed payment
Payment Terms T/T
Supply Ability 100 Pieces per Week
Product Details
Type Portable Charge Voltage 100-240VAC, 50/60Hz
Automatic Spot Welding Time 3 Seconds Recover / Charging Time 10 Seconds
Thermocouple Size 0.5mm/0.7mm/1.0mm
High Light

portable spot welding machine

,

thermocouple welding machine

Product Description

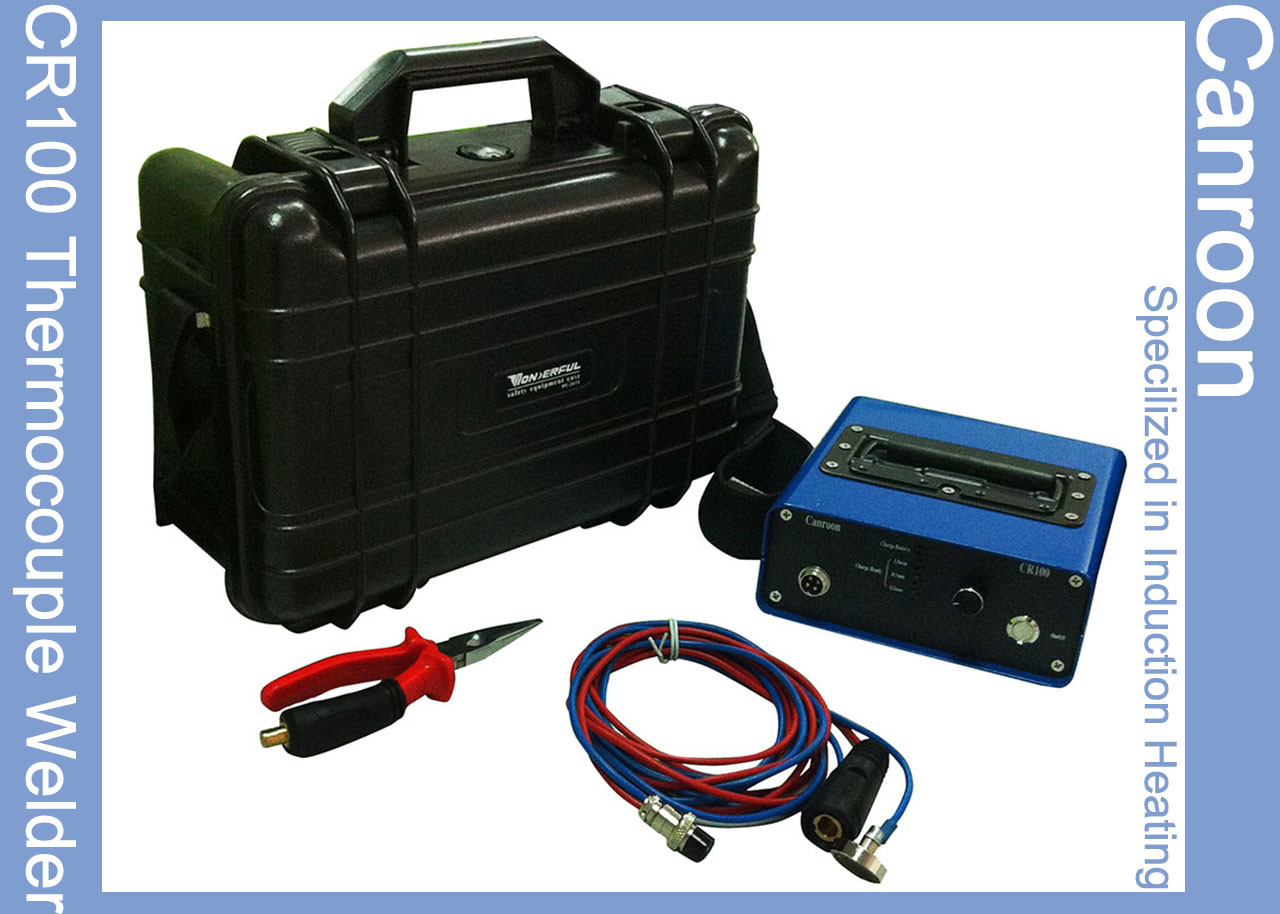

Re - Chargeable Thermocouple Spot Welder , Spot Welding Equipment 50 / 60hz





CR100 portable thermocouple welder is very welcomed in projects doing welding preheat and PWHT. It helps to fix firmly thermocouple on pipes or other workpieces.



It is very important for an accurate temperature feedback from pipe surface to our induction heating machine, and the heating will be conducted automatically according to set temperature-time curve.



It can also be used for welding of metal workpiece and other metal material. TC size can be up to 1.0mm.





Size & Package:



74*185*188mm, 2.7KG



Hand-held Outdoor Case / Safety Equipment Case



Gross Weight: 5.6KG





Feastures:



small size 74*185*188 mm
light & handy 2.7kg
fast spot welding 3 seconds
automatic charging recover 10 Seconds
power choice 0.5mm / 0.7mm / 1.0mm (for TC size)
big battery capacity 2000 times using after fully charged





Characters:

  • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
  • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
  • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
  • Strong electric storage ability enable 2000 times of using after fully charged;
  • Just 10 seconds for circuit recovery after one time spot welding;
  • Charging limitation, no need for watching when charging;
  • LED display enables visual run state management;
  • Protection for over discharge.
