Brief introduction of Canroon high quality CE ISO induction PWHT machine for flange:

Induction heaitng equipment is designed and manufactured by Canroon used for pipes PWHT/post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate stress relief), widely applied and welcomed by oil&gas piping, offshore platform construction, and power plant construction & repair.

We have portable type with 5kw, 10kw, for movable type, we have 40kw, 80kw, 120kw. For 40kw induction heating equipment applied in PWHT, the suitable pipe size with Diameter of 200-1600mm and Thickness of 25-120mm, heating temperature will reach 788℃ at most. It can heat both carbon steel pipes and stainless steel pipes.

Besides, application of welding preheat, joint anti-corrosion coating and shrink fitting are also very efficient.

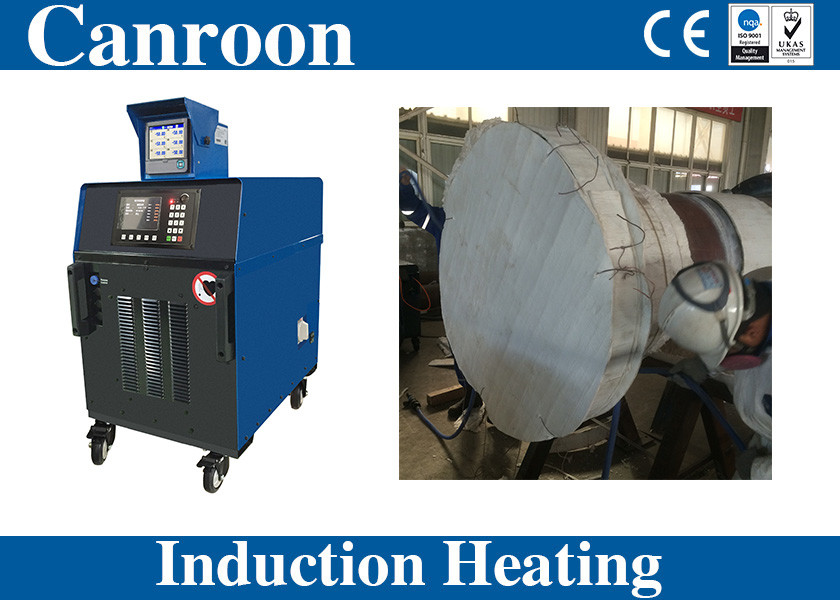

Overall pictures of Canroon high quality CE ISO induction PWHT machine for flange:

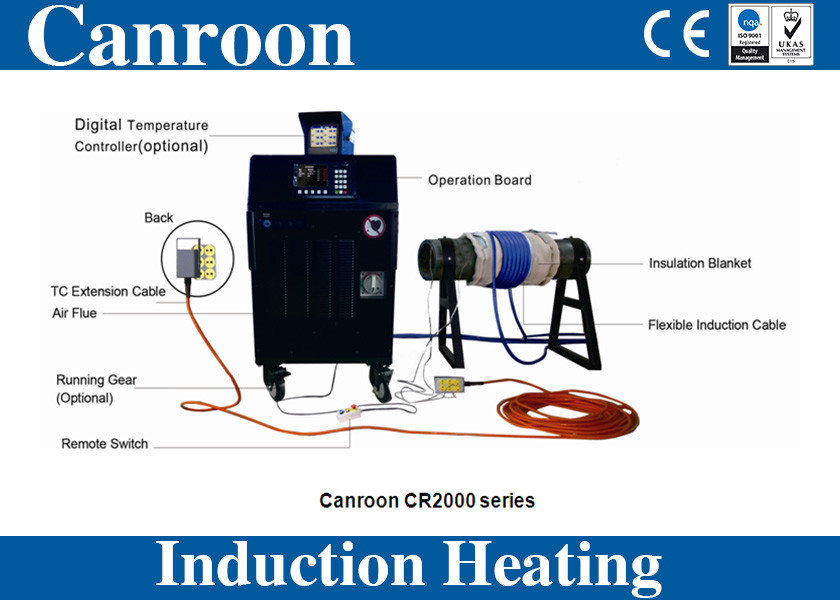

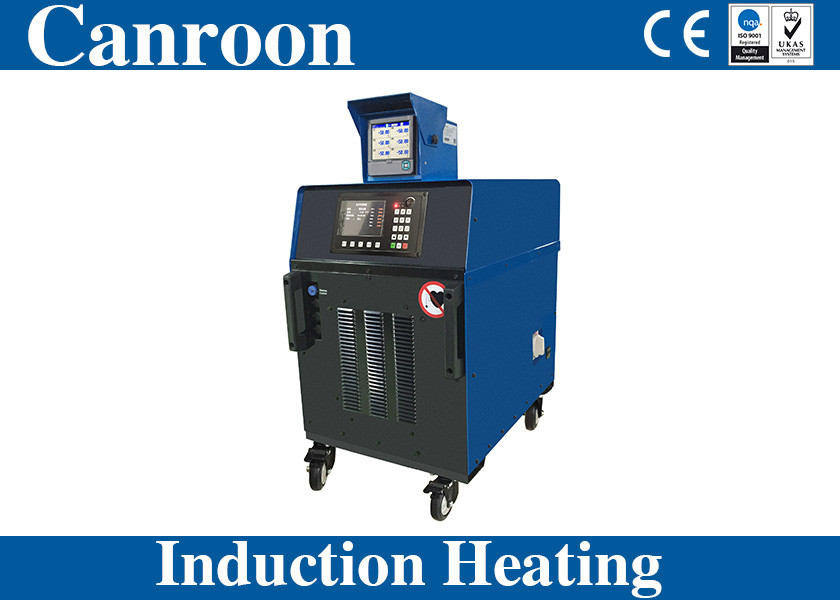

Canroon induction heating equipment is designed and manufactured with high quality materials, it has beautiful outlook, universal wheels for high movability, temperature recorder for precise control, display panel to show working details, six thermocouple connections to record the temperatures, and remote control for working site accordingly.

Technical parameters of high quality CE ISO induction PWHT machine for flange:

Application details of high quality CE ISO induction PWHT machine for flange:

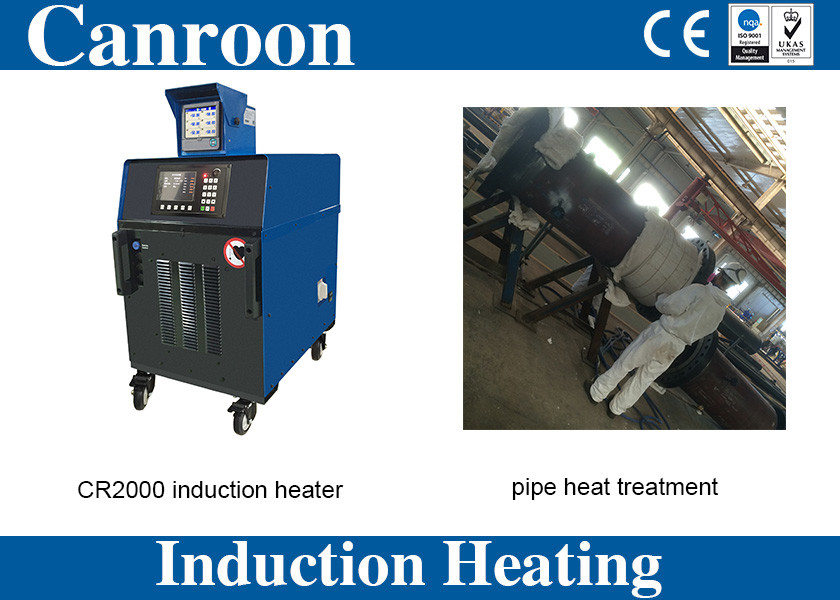

Induction heating machine with temperature recorder for pipe PWHT/post weld heat treatment works very well, from the temperature feedback from thermocouple, we can see it is fast and uniform heating, insulation blanket can keep heat, and the induction cable windings can be set according to your pipe, heating temperature, etc. following is picture of the detailed working site.

PWHT curve:

Features of high quality CE ISO induction PWHT machine for flange:

• Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.

• Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

• Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

• Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

• Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

• High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

• Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.

• Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.

Accessories of high quality CE ISO induction PWHT machine for flange:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
