|Place of Origin:||Shenzhen, China|
|Certification:||CE, ISO9001:2008, etc|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||wooden case|
|Delivery Time:||within 7 days if available in stock|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||500 sets per month|
|Frequency:||High Frequency, Medium Frequency,||Structure:||Simple Design, Easy Operation,|
|Application:||Metal Heat Treatment||Function:||Induction Brazing|
induction preheating welding,
stress relieving machine
Induction Heat Treatment System/Induction Heating Power Supply
Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc
Voltage: 3phase, 380-460V, 50/60HZ,
Certificates: ISO, CE, etc
Application industries: aviation, metallurgy, tools and equipment, automotive, etc
Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc
Features: built-in chiller, HHT, universal wheels, digital control, self-fault diagnosis, modular design, etc
Technical parameters of induction heat treatment system/induction heating power supply:
|Model||Rated input voltage & frequency||Rated input power||Rated input current||Output frequency|

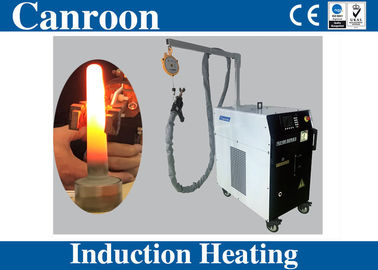

Overall pictures of induction heat treatment system/induction heating power supply:
Canroon is China leading manufacturer of induction heating system, our CR2100 series are especially designed for metal brazing, with water cooling system built-in, it will be more convenient when real-site working. The main structure concerns: induction heating machine, water cooling system, universal wheels, hanger, soft induction cable, HHT, detachable inductor.
Applications of induction heat treatment system/induction heating power supply:
Our induction heating machine can be applied in many metal industries, and suitable for nearly all metals like copper, steel, iron, brass, aluminum, etc, with fast and uniform heating, and good performance, induction heating is more and more popular in industry that requires for more automatic and new advanced technologies.

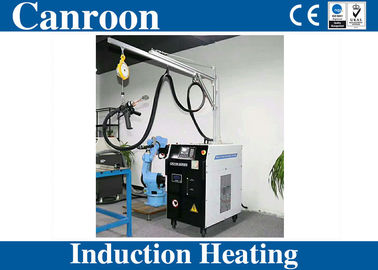

See the following pictures of the working site:
HHT (hand held transformer)
Inductors, can be customized:
Advantages of induction heat treatment system/induction heating power supply:
· High Temp. & Fast Heating
Able to reach >1000℃ within seconds.
· Easy Operation
CR2100 can be easily start&stop manually, and scan on workpieces surface to do local heating. It can also be integrated into robot arm to serve automatic line.
· Accurate Control
The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.
· Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
· Easy Maintenance
Due to modular design, the maintenance will be easy and low-cost.
Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.
· Customized Inductor
Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.
