Handheld Portable Induction Preheating Machine IGBT Induction Heating Machine with Digital Control
Product Details
| Power | 5kw, 10kw | Size | Portable, Handheld, Small, Mini |
|---|---|---|---|
| Tech | IGBT | Control | Digital Control |
| Design | Modular Design | TC Input | 2 |
| Application | Pre Heat Treatment | Industry | Pipeline, Offshore, Power Plant |
| High Light | high frequency induction heating,heat treatment machine |
||
Product Description
Portable induction preheating machine/ IGBT Induction Heating Machine
Brief introduction of digital control induction heating machine 5kw for welding preheating PWHT:
Brand: Canroon(China manufacturer)
Power:5kw
Frequency:3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 220-240V, 1 phase, 50/60HZ,
Suitable pipe size: 30-300mm diameter, less than 25mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment, pipe welding preheat, joint anti-corrosion coating, etc
Features: small, portable, digital control, self-fault diagnosis, modular design, fault code feedback, etc

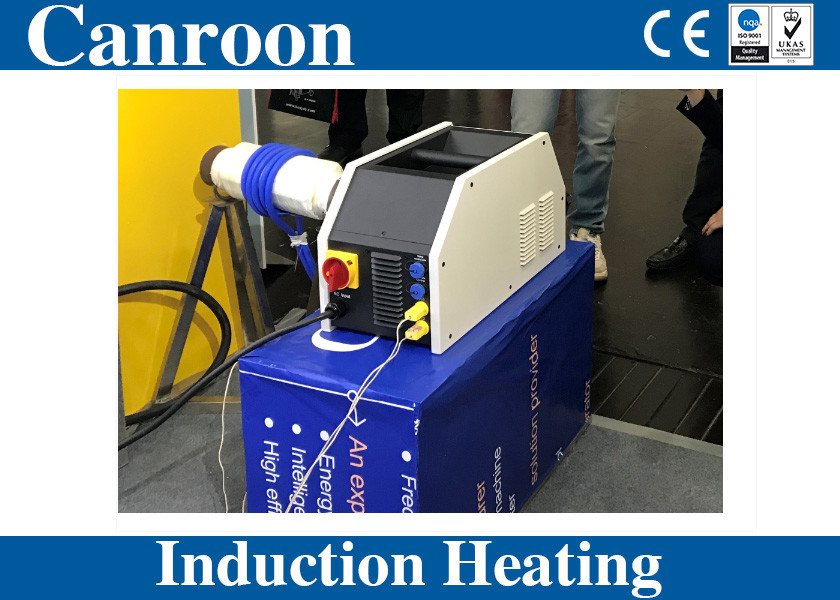

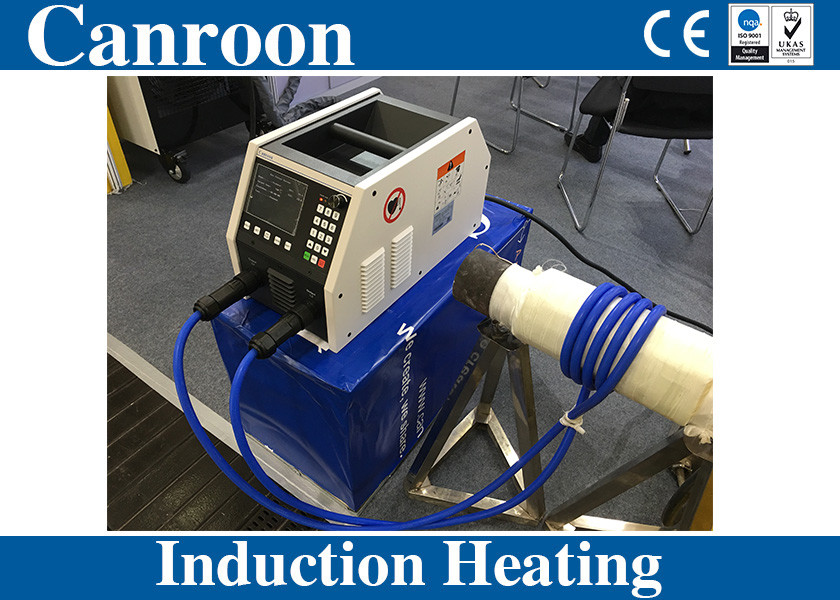

Detailed picture of portable induction preheating machine/IGBT induction heating machine:
Parameters of portable induction preheating machine/IGBT induction heating machine:
| Model | Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-005B-12SF2 | 788℃ | 5kVA |
1-phase 220-240V 50-60Hz 20.8-22.7A |
4.2kW 5-60 KHz duty cycle 100% |
W:242.9mm H:295.2mm D: 504.4mm
|
16kg
|
|
CR2000-005B-14TF1
|
788℃ | 5kVA |
3-phase 380-460V 50-60Hz 6.3-7.6A |
4.5kW 3-35 KHz duty cycle 100% |
W:263mm H:302mm D:535mm
|
18.6kg
|
|
CR2000-010B-14TF1
|
788℃ |
10kVA
|
3-phase 380-460V 50-60Hz 12.5-15A
|
9kW 3-35 KHz duty cycle 100% |
W:263mm H:302mm D:535mm
|
18.6kg |
Application details of portable induction preheating machine/IGBT induction heating machine:
Induction heating machine for welding preheating, portable size, easy to handle,
Accessories of portable induction preheating machine/IGBT induction heating machine:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our dellivery.
Advantages of portable induction preheating machine/IGBT induction heating machine:
- precise control
We have display panel to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.
- Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control.
- Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
- Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.
- Self Diagnosis
Once fault occurs, induction heater will display fault code, which was detailed explained in manual book.
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes, reducing cycle time.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
