Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance

Good quality High Frequency Induction Heating Machine for sales
Good quality High Frequency Induction Heating Machine for sales
I'm Online Chat Now

Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance

China Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance supplier
Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance supplier Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance supplier Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance supplier

Large Image :  Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2100

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: FOB
Packaging Details: wooden case
Delivery Time: within 7 days if available in stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Brand: Canroon, China Leading Manufacturer Power: 10-50kw
Size: Portable, Handheld, Small Frequency: High Frequency, Medium Frequency, Customized
Function: Induction Brazing Application: Metal Heat Treatment
Suitable Material: Copper, Iron, Steel, Brass, Etc Module: IGBT Module
Transformer: HHT/handheld Coaxial Transformer Cooling: Water Cooling System



Handheld High Frequency Induction Heating Machine for Brazing






Brief introduction of handheld high frequency induction heating machine for brazing:

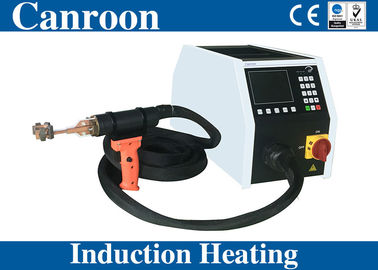

Canroon is China leading manufacturer of induction heating machine, CR2100 series is our widely popular both in China and oversea countries, digital control, modular design, LED display panel, HHT, detachable inductor, soft induction cable, water cooling system, see the following picture:



Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance


Handheld coaxial transformer and customized inductor:



Water Cooling High Frequency Portable Induction Brazing Equipment for Copper Steel Brass






Application details of handheld high frequency induction heating machine for brazing:



Materials:

All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.

Applications:

Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.

Workpieces:

<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.

<> Heat exchanger: copper tube;

<> Automobile die;

<> Crank shaft;

<> Oil&gas pipe.






Following is the working site of our induction heating machine applied in induction brazing for copper tube.



Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance

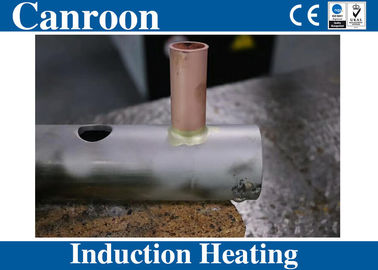

Finished brazing part, you can see how smooth it is. Good performance and fast heating are welcomed in many metal industries.



Handheld High Frequency Induction Heating Machine for Copper Tube Brazing Heat Treatment with Good Performance




Technical Parameters of handheld high frequency induction heating machine for brazing:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B-14TW1 3-phase
/400V
(±20%)
50/60Hz
10KVA 15A 10~40KHZ

4~6 bar

≥12L/min

L: 581mm

W: 283mm

H: 334mm

CR2100-015B-14TW1 15KVA 22A
CR2100-020B-14TW1 20KVA 30A
CR2100-025B-14TW1 25KVA 37A

4~6 bar

≥19L/min

CR2100-030B-14TW1 30KVA 45A
CR2100-035B-14TW1 35KVA 53A
CR2100-040B-14TW1 40KVA 60A
CR2100-050B-14TW1 50KVA 75A






Product features of handheld high frequency induction heating machine for brazing:



1. High efficient: thermoelectric conversion efficieny: >85%;



2. Enviromental friendly: zero pollution, zero discharge;



3. Intelligent: PID temperature closed-loop control, precise temperature control;



4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.



5. Operation interface: humanized MMI, chinese/ English available;



6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;



7. Automation integration: Quickly and easily integrated into automated production lines;



8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
