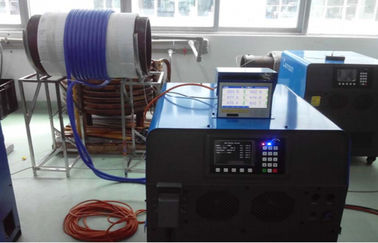

Air Cooled Induction Heating Machine 80kW Digital Control For Pipe Pre-Heating
Place of Origin Shenzhen china
Brand Name canroon
Certification CE ISO9001:2008
Model Number CR2000
Minimum Order Quantity 1 piece
Price 45000US $ FOB
Packaging Details Carton or depends on you
Delivery Time A week after confirmed payment
Payment Terms FOB
Supply Ability 20 Piece/Pieces per Week
Product Details
High Light

high frequency induction heating

,

induction heat treatment equipment

Product Description

Air Cooled Induction Heating Machine 80kW Digital Control For Pipe Pre-Heating

Quick Detail:

Type:Other
Place of Origin:China (Mainland)
Brand Name:Canroon
Model Number:CR2000-080A-14T
Voltage:380V
Current:122A
Rated Capacity:80KW
Rated Duty Cycle:80KW
Dimensions:880*663*982
Weight:201Kg
Usage:induction temperature stress relievers
Certification:CE ISO9001:2008
After-sales Service Provided:Overseas service center available
Process:Induction heating equipment
Input Power:380V,3-Phase
Temperature recorder:6 Channel temperature recorder

Description:

The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.

Applications:

Pre-heating of pipe to 300°F before welding on a transmission pipeline. Air-cooled induction blankets are perfect for this application. The induction coil is sewn into a durable 3-D woven silica material with preheat insulation on the bottom. The entire blanket can be moved from joint-to-joint with minimal change over time. Induction blankets can be used to heat the target material up to 400° F.

Specification

Input Amperes at Rated Output

380V:122A

Thermal conversion efficiency

More than 90%

Maximum Rated output

80KW

Cooling Mode

Air cooled

Input Power

380V 3-Phase,50HZ

Rated Output

80KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:880MM W:663MM D:982MM

Transportation

By sea or By Air

Weight

201KG

Warranty

12 Months


Competitive Advantage:

1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.


Tag:induction forging heater
