40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry

Good quality High Frequency Induction Heating Machine for sales
Good quality High Frequency Induction Heating Machine for sales
I'm Online Chat Now

40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry

China 40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry supplier
40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry supplier 40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry supplier 40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry supplier 40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry supplier

Large Image :  40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE; ISO9001:2008
Model Number: CR2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 7 days if available in stock
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Power: 40kw, 80kw, 120kw Frequency: Mediate Frequency, High Frequency
Workpiece: Steel Pipes Pipe Size: 30-2500mm Regularly
Heating Temperature: Can Reach 788 ℃ Technology: IGBT, Digital Control, Modular Design
Usage: Offshhore Platform, Oil And Gas Pipeline, Power Plant, Etc Application: Pipe Pre/post Heat Treatment, Joint Anti-corrosion Coating



Pipe Heat Treatment Induction Welding Preheat Equipment





Brief introduction of Canroon pipe heat treatment induction welding preheat equipment:
Induction heating machine uses new technology of IGBT, digital control, modular design, self fault feedback, with high efficiency, better performance. can be used for steel pipe preheating, also efficient for post weld heat treatment/PWHT, joint anti-corrosion coating, widely applied in industry of : offshore platform, oil and gas pipepine construction, power plant, etc

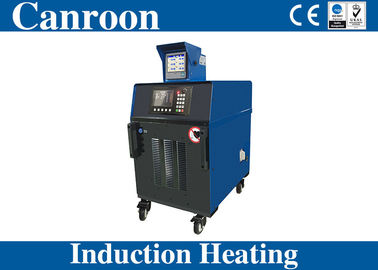

Overall pictures of Canroon pipe heat treatment induction welding preheat equipment:
following is overall picture of our induction heating machine for pipe preheating, with 6 thermocouple inputs, can control temperature precisely, display panel for easy operation, also you can connect one temperature recorder to show details of parameters when working.
40kw 80kw 120kw pipe heat treatment induction welding preheat equipment with C type inductor in pipeline industry
Technical parameters of pipe heat treatment induction welding preheat equipment:

Model


TemperatureInput PowerInputOutputDimensionWeight
CR2000-040788℃40KVA3-phases
380V-460V
50-60Hz
50-61A
35KW
3-35KHz
Duty Cycle: 100%
H:762mm
W:544mm
L:730mm
115kg
CR2000-080788℃80KVA3-phases
380V-460V
50-60Hz
100-121A
72KW
2.3-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm
190kg
CR2000-120788℃120KVA3-phases
380V-460V
50-60Hz
150-181A
108KW
2.5-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm
190kg

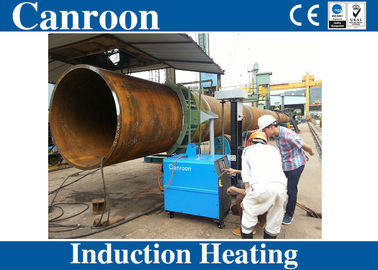

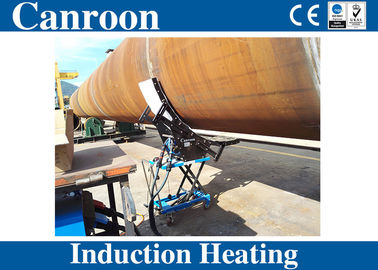

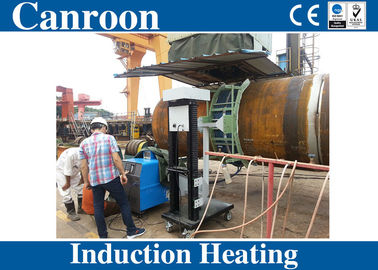

Application details of pipe heat treatment induction welding preheat equipment:
Following is detailed application of induction heating machine for pipe welding preheat, applis one C type inductor, the pipe is rotating, and 6 thermoccouples to feedback the temperature, also we can provide the extension induction cable if your working site is bigger or want the induction heater away from the pipe for safe and easy working.



Welding Equipment Induction Heating Machine for Pipe Heat Treatment


Induction heating machine can be connected with following different types of inductors:

C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT), plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for joint anti-corrosion coating).
Welding Equipment Induction Heating Machine for Pipe Heat Treatment





Features of pipe heat treatment induction welding preheat equipment:

  • Friendly Interface and Accurate Control

  • Various Control Mode

  • Fault Record

  • Easy Maintenenace

  • Self Diagnosis

  • High Efficiency

  • Uniform Heating

  • Replaceable Heating Inductor





Accessories of pipe heat treatment induction welding preheat equipment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
Induction Post Weld Heat Treatment Machine for Stainless Steel Pipes
